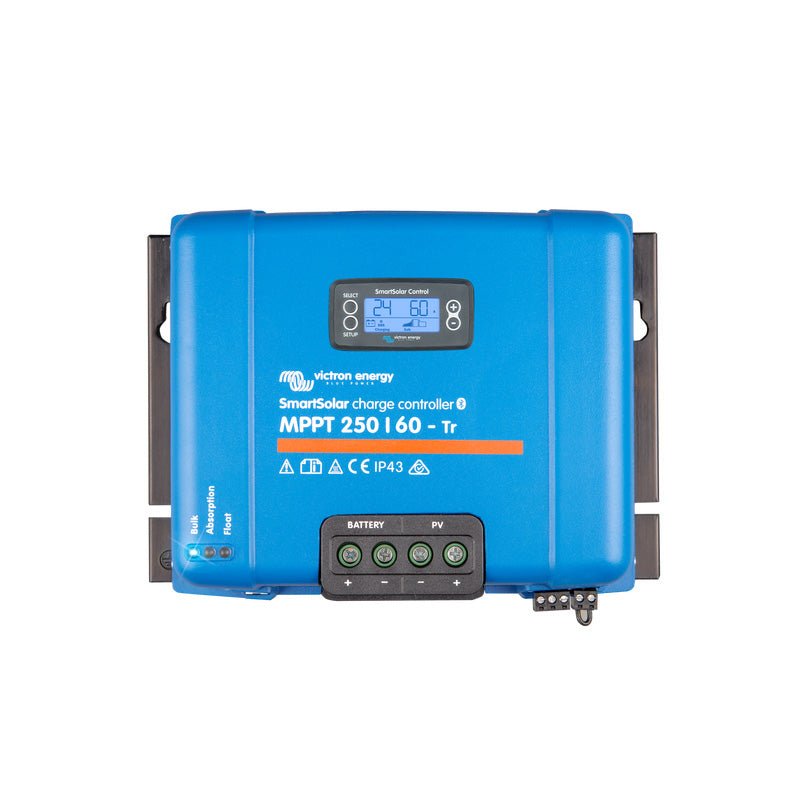

Victron SmartSolar 250V-60A TR MPPT Charge Controller
R6,244.00
Victron SmartSolar 250V-60A TR MPPT Charge Controller – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Get the most out of every ray of sun. This charge controller maximises solar harvest and protects your battery bank for safe, efficient off-grid and backup charging.
The Victron SmartSolar 250V-60A TR MPPT Charge Controller by Victron Energy is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Maximises solar harvest and charging efficiency
- Protects and extends the life of your battery bank
- Ideal for off-grid and backup systems
- Proven, reliable technology
Specifications
| Bluetooth Smart built | in: dongle not needed. |
|---|---|
| Remote on | off. |
| Optional | pluggable LCD display. |
| Battery voltage | 12 / 24 / 48V Auto Select (software tool needed to select 36V). |
| Rated charge current | 60A. |
| Nominal PV power, 12V | 860W. |
| Nominal PV power, 24V | 1720W. |
| Nominal PV power, 48V | 3440W. |
| Max. PV short circuit current | 35A. |
| Maximum PV open circuit voltage | 250V absolute maximum coldest conditions; 245V start-up and operating maximum. |
| Maximum efficiency | 99%. |
| Self | consumption: Less than 35mA @ 12V / 20mA @ 48V. |
| Charge voltage 'absorption' Default setting | 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth). |
| Charge voltage 'float' Default setting | 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth). |
| Charge algorithm | Multi-stage adaptive. |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Operating temperature | -30 to +60°C (full rated output up to 40°C). |
| Humidity | 95%, non-condensing. |
| Data communication port | VE.Direct or Bluetooth. |
| Remote on/off | Yes (2 pole connector). |
| Programmable relay | DPST (AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC) |
| Parallel operation | Yes (not synchronized). |
| Colour | Blue (RAL 5012). |
| PV terminals | 35 mm² / AWG2 (Tr models). |
| Battery terminals | 35 mm² / AWG2. |
| Protection category | IP43 (electronic components), IP22 (connection area). |
| Weight | 3 kg. |
| Dimensions (h x w x d) in mm | 185 x 250 x 95. |
