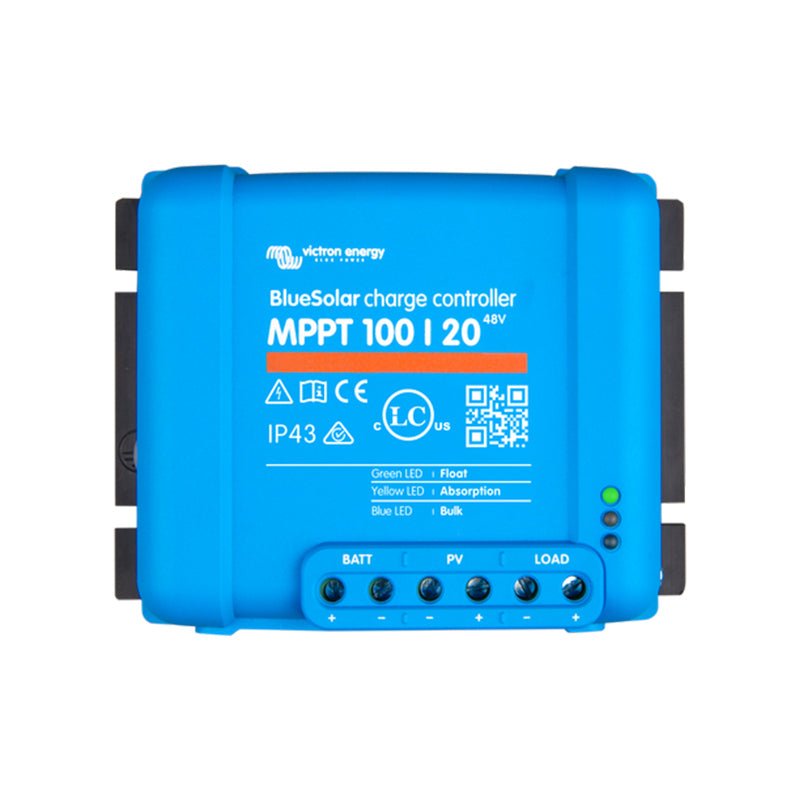

Victron Blue Solar 100V-20A MPPT Charge Controller
R1,017.00
Victron Blue Solar 100V-20A MPPT Charge Controller – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Get the most out of every ray of sun. This charge controller maximises solar harvest and protects your battery bank for safe, efficient off-grid and backup charging.
The Victron Blue Solar 100V-20A MPPT Charge Controller by Victron Energy is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Maximises solar harvest and charging efficiency
- Protects and extends the life of your battery bank
- Ideal for off-grid and backup systems
- Proven, reliable technology
Specifications
| BlueSolar charge controller | MPPT 100/20. |
|---|---|
| Battery voltage | 12/24/48 V. |
| Rated charge current | 20 A. |
| Maximum PV power @ 12V | 290 W (MPPT range 15 V to 70 V resp. 95 V). |
| Maximum PV power @ 24V | 580 W (MPPT range 30 V to 70 V resp. 95 V). |
| Maximum PV power @ 48V | 1160 W (MPPT range 30 V to 70 V resp. 95 V). |
| Automatic load disconnect | Yes. |
| Maximum PV open circuit voltage | 100 V. |
| Peak efficiency | 98 %. |
| Self | consumption: 26 / 20 / 19 mA. |
| Charge voltage 'absorption' | 14,4 V / 28,8 V / 57,6 V. |
| Charge voltage 'float' | 13,8 V / 27,6 V / 55,2 V. |
| Charge algorithm | Multi-stage adaptive. |
| Temperature compensation | -16 mV / °C resp. -32 mV / °C. |
| Continuous/peak load current | 20 / 20 / 1A. |
| Operating temperature | -30 to +60°C (full rated output up to 40°C). |
| Humidity | 100 %, non-condensing. |
| Data communication port | VE.Direct. |
| Colour | Blue (RAL 5012) |
| Power terminals | 6 mm² / AWG10 |
| Protection category | IP43 (electronic components), IP22 (connection area). |
| Weight | 0,65 kg. |
| Dimensions (h x w x d) | 100 mm x 113 mm x 60 mm. |
