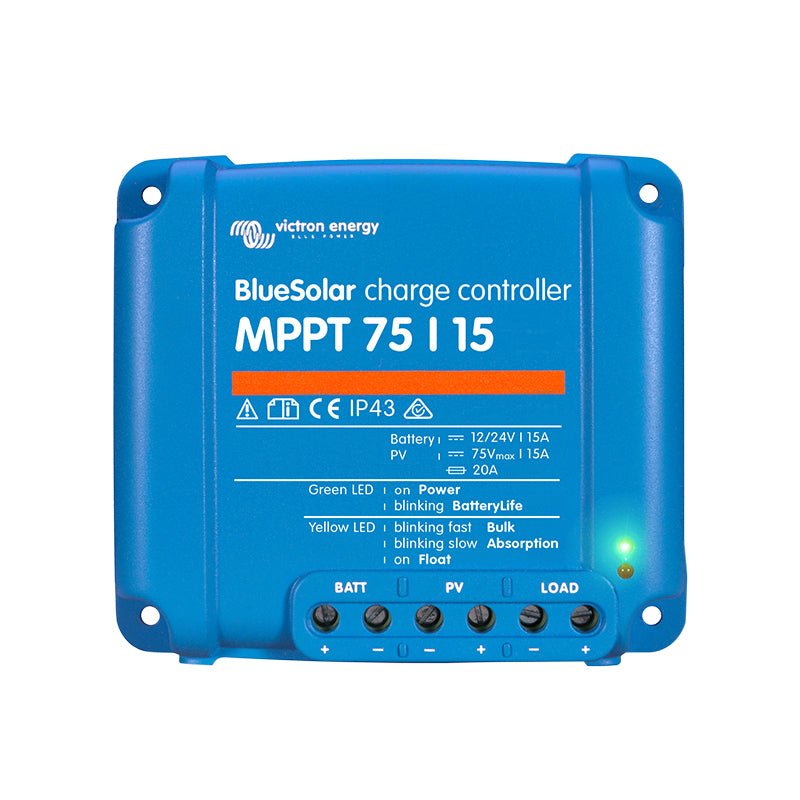

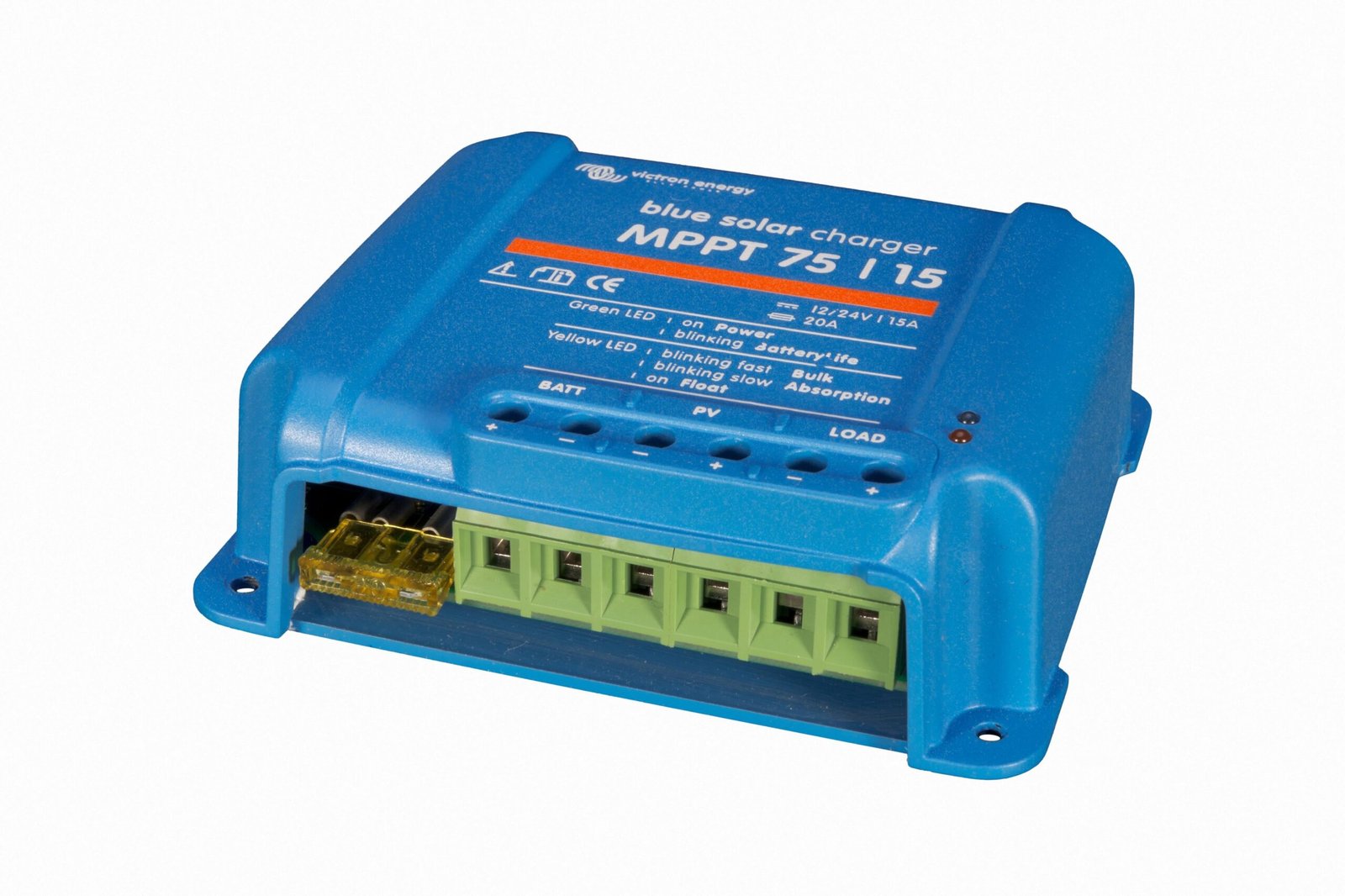

Victron Blue Solar 75V-15A MPPT Charge Controller
R669.00
Victron Blue Solar 75V-15A MPPT Charge Controller – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Get the most out of every ray of sun. This charge controller maximises solar harvest and protects your battery bank for safe, efficient off-grid and backup charging.
The Victron Blue Solar 75V-15A MPPT Charge Controller by Victron Energy is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Maximises solar harvest and charging efficiency
- Protects and extends the life of your battery bank
- Ideal for off-grid and backup systems
- Proven, reliable technology
Specifications
| Battery voltage (auto select) | 12 / 24 V |
|---|---|
| Rated charge current | 15 A |
| Nominal PV power (12 V) | 220 W |
| Nominal PV power (24 V) | 440 W |
| Max. PV open circuit voltage (Voc) | 75 V |
| Max. PV short circuit current (Isc) | 15 A |
| Peak efficiency | 98% |
| Self-consumption (load on) | 12 V: 25 mA / 24 V: 15 mA |
| Self-consumption (load off) | 12 V: 10 mA / 24 V: 8 mA |
| Charge voltage “absorption” | 14.4 / 28.8 V (adjustable) |
| Charge voltage “float” | 13.8 / 27.6 V (adjustable) |
| Charge algorithm | Multi-stage adaptive |
| Temperature compensation | -16 mV/°C (12 V), -32 mV/°C (24 V) |
| Max. continuous load current | 15 A |
| Low voltage load disconnect | 11.1 / 22.2 V or 11.8 / 23.6 V or Battery Life algorithm |
| Low voltage load reconnect | 13.1 / 26.2 V or 14 / 28 V or Battery Life algorithm |
| Protection | Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95%, non-condensing |
| Data communication port | VE.Direct |
| Enclosure colour | Blue (RAL 5012) |
| Power terminals | 6 mm² / AWG10 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 0.5 kg |
| Dimensions (H × W × D) | 100 × 113 × 50 mm |
| Safety standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
