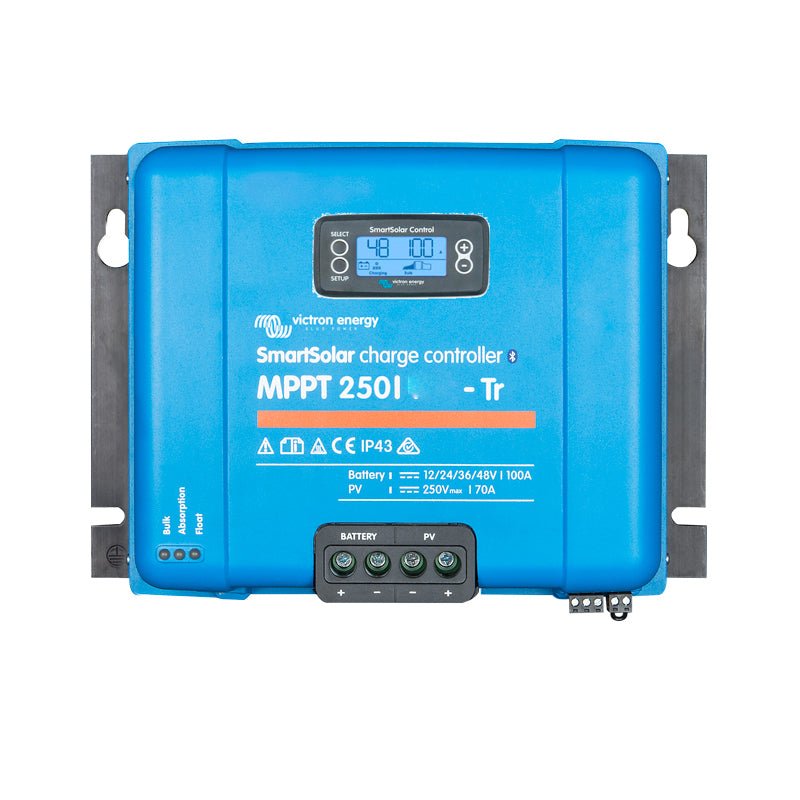

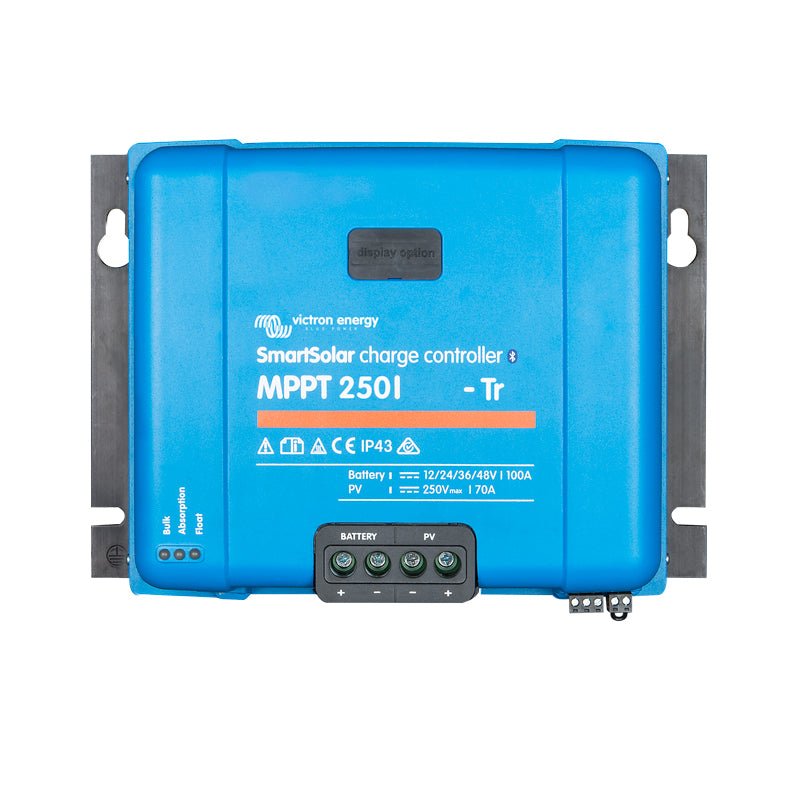

VictronSmartSolar 250V-100A TR VE.Can MPPT Charge Controller
R8,563.00
VictronSmartSolar 250V-100A TR VE.Can MPPT Charge Controller – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Get the most out of every ray of sun. This charge controller maximises solar harvest and protects your battery bank for safe, efficient off-grid and backup charging.
The VictronSmartSolar 250V-100A TR VE.Can MPPT Charge Controller by Victron Energy is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Maximises solar harvest and charging efficiency
- Protects and extends the life of your battery bank
- Ideal for off-grid and backup systems
- Proven, reliable technology
Specifications
| Bluetooth Smart built | in: dongle not needed. |
|---|---|
| Remote on | off. |
| Battery voltage | 250/100 – 12V/24V/48V Auto Select (software tool needed to select 36V). |
| Rated charge current | 100A. |
| Maximum PV power, 12V | 1450W. |
| Maximum PV power, 24V | 2900W. |
| Maximum PV power, 48V | 5800W. |
| Max. PV short circuit current | 70A. |
| Maximum PV open circuit voltage | 250V absolute maximum coldest conditions. 245V start-up and operating maximum. |
| Maximum efficiency | 99%. |
| Self | consumption: Less than 35mA @ 12V/20mA @ 48V. |
| Charge voltage 'absorption' | Default setting: 14,4V/28,8V/43,2V/57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth). |
| Charge voltage 'float' | Default setting – 13,8V/27,6V/41, 4 / 55,2V (adjustable: rotary switch, display, VE.Direct or Bluetooth). |
| Charge algorithm | multi-stage adaptive. |
| Temperature compensation | -16 mV / -32 mV / -68 mV / °C. |
| Operating temperature | -30 to +60°C (full rated output up to 40°C). |
| Humidity | 95%, non-condensing. |
| Data communication port | VE.Direct or Bluetooth. |
| Remote on/off | Yes (2 pole connector). |
| Programmable relay | DPST; AC rating: 240 VAC / 4 A; DC rating: 4A up to 35VDC, 1A up to 60 VDC. |
| Parallel operation | Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units). |
| Dimensions (TR Version) | 216 mm x 295 mm x 103 mm. |
| PV terminals 3) | 35 mm² / AWG2 (Tr models) – Three pairs of MC4 connectors (MC4 models) |
| Battery terminals | 35mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4,5kg |
| Dimensions | Tr models: 216H x 295W x 103D (mm) |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| 30 | day historical values. |
| Suitability | Suitable for the Victron Energy 150V and 250V BlueSolar and SmartSolar MPPT solar charger range that are equipped with a display port. |
| Display port connector | RS232 9 pin pinout |
| Dimensions (w x l x h) | 116mm x 50mm x 25mm |
