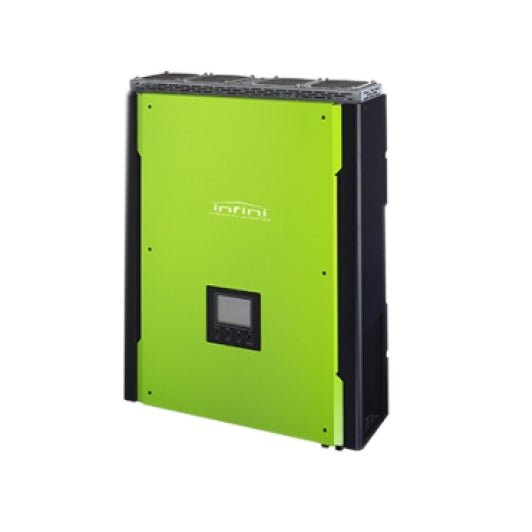

Mecer Infini Solar 15kW 3-Phase Dual MPPT Hybrid Inverter
R61,453.00
Mecer Infini Solar 15kW 3-Phase Dual MPPT Hybrid Inverter – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
The inverter is the brain of any solar or backup system, seamlessly managing solar, battery and grid power and switching to backup in milliseconds when the grid goes down.
The Mecer Infini Solar 15kW 3-Phase Dual MPPT Hybrid Inverter by Voltronic is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Seamlessly manages solar, battery and grid power
- Fast automatic switchover the moment the grid drops
- Works with leading lithium batteries
- Remote/app monitoring where supported
Specifications
| Self | consumption and Feed-in to the grid |
|---|---|
| User | adjustable charging current up to 300A |
| Multiple communication for USB, RS | 232, Modbus and SNMP |
| Monitoring software for real | time status display and control |
| Warranty | 24 months |
| Model | InfiniSolar 15KW. |
| Phase | 3-phase in/3-phase out. |
| Max. PV Input Power | 22500W. |
| Rated Output Power | 15000W. |
| Maximum Charging Power | 15000W. |
| Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC. |
| Start | up Voltage/Initial Feeding Voltage: 320 VDC/350 VDC. |
| MPP Voltage Range | 350VDC~850 VDC. |
| Number of MPP Trackers/Maximum Input Current | 2/A:37.65A , B: 18.6A |
| Nominal Output Voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Output Voltage Range | 184 -264.5 VAC per phase |
| Nominal Output Current | 21.7A per phase |
| Power Factor | >0.99. |
| Maximum Conversion Efficiency (DC/AC) | 96%. |
| European Efficiency @ Vnominal | 95%. |
| AC start | up Voltage/Auto Restart Voltage: 120-140 VAC per phase/180 VAC per phase. |
| Acceptable Input Voltage Range | 170-280 VAC per phase. |
| Max. AC Input Current | 40A. |
| Max. DC Voltage | 900 VDC. |
| Number of MPP Trackers/Max. Input Current | 2/A: 37.65A, B:18.6A |
| Output Waveform | Pure Sinewave. |
| Efficiency (DC to AC) | 91%. |
| AC Start | up Voltage/Auto Restart Voltage: 120-140 VAC per phase/180 VAC per phase. |
| Nominal DC Voltage | 48 VDC. |
| Max. Charging Current | Default 60A, 5A-300A (Adjustable). |
| Dimension (D x W x H) (mm) | 219 x 650x 820 |
| Net weight (kgs) | 62 |
| Communication Port | RS-232/USB and Dry contact |
| Intelligent Slot | Optional SNMP, Modbus and AS-400 cards available. |
| Humidity | 0~90% RH (Non-condensing). |
| Operating Temperature | -10 to 55 °C |
| Altitude | 0-1000 m. |
| Start-up Voltage/Initial Feeding Voltage | 320 VDC/350 VDC |
| AC start-up Voltage/Auto Restart Voltage | 120-140 VAC per phase/180 VAC per phase |
| AC Start-up Voltage/Auto Restart Voltage | 120-140 VAC per phase/180 VAC per phase |
| Weight | 62 kg |
