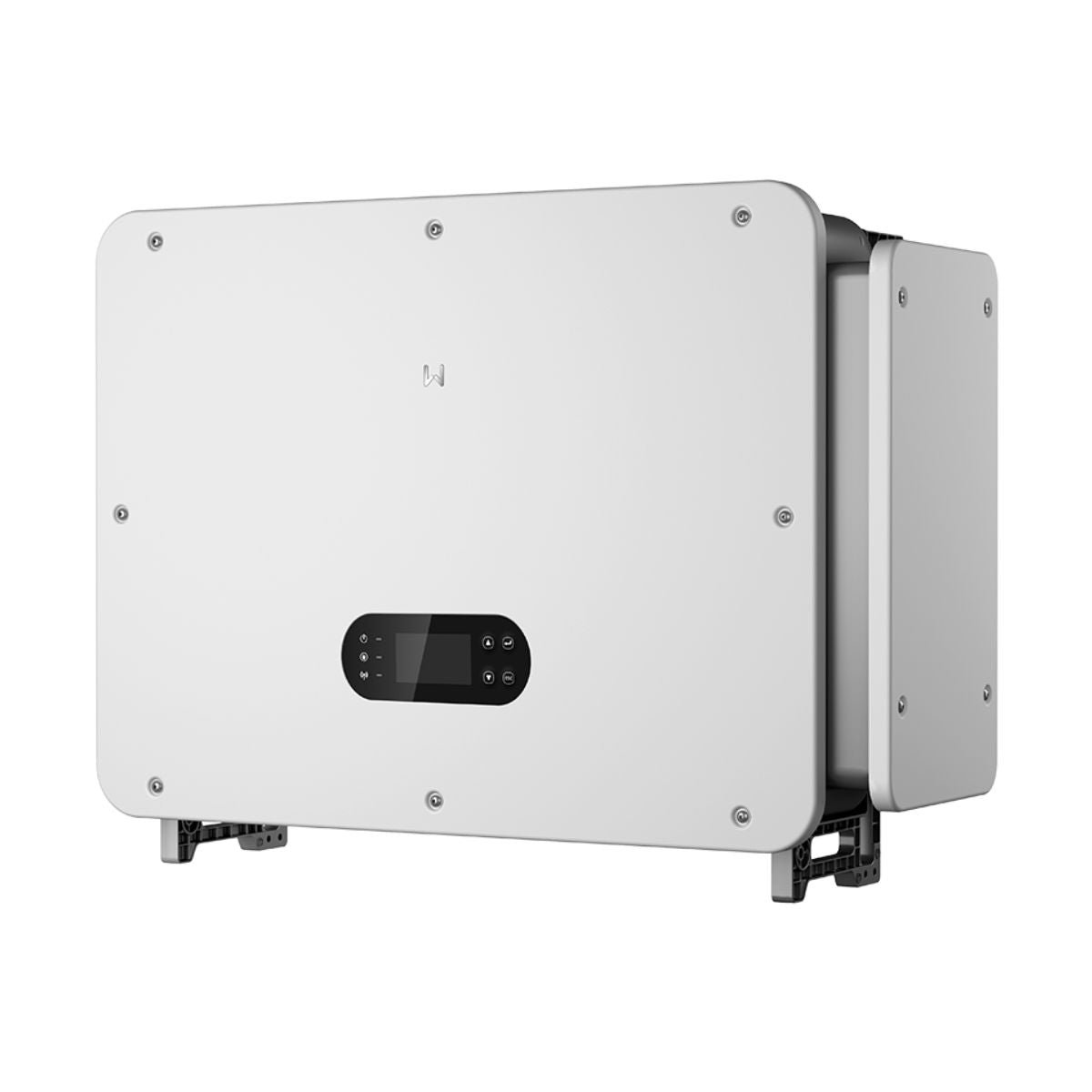

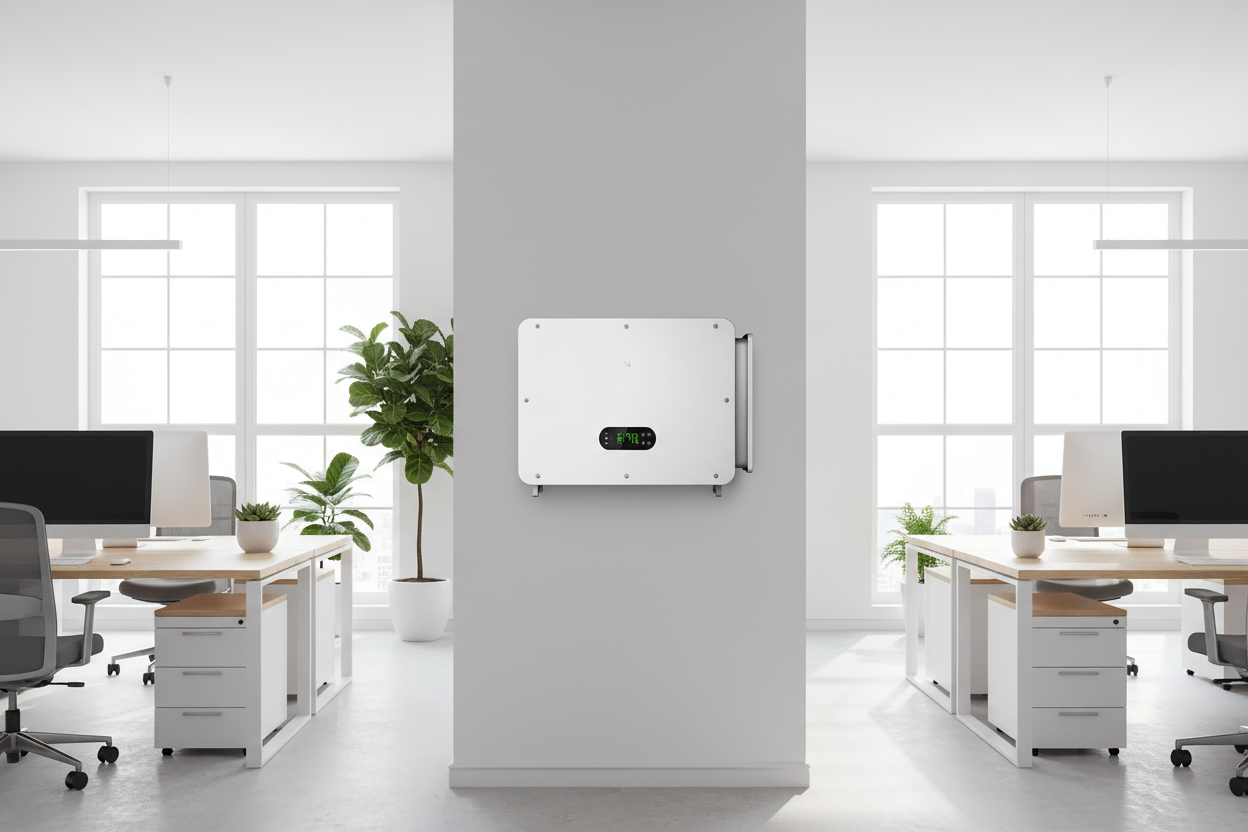

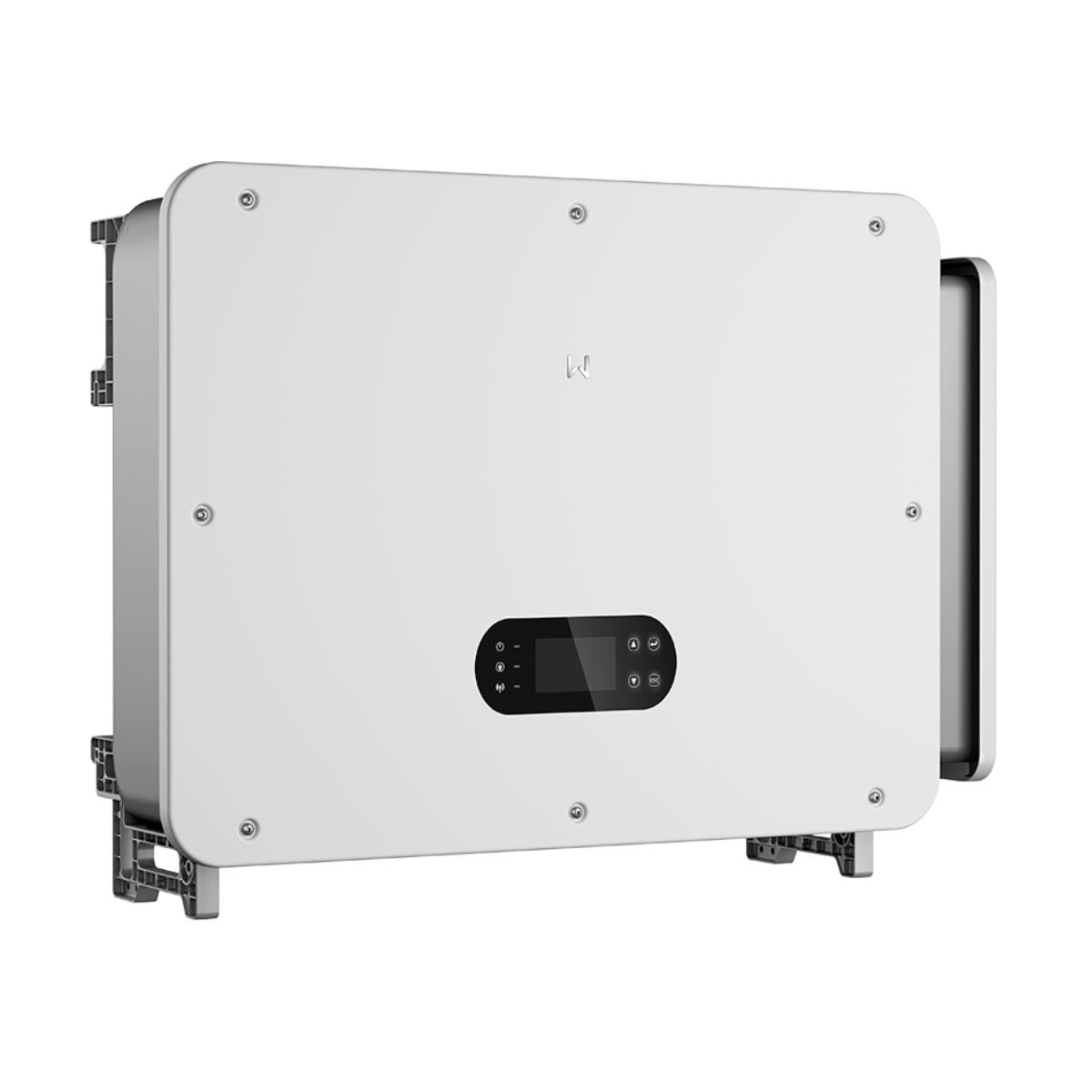

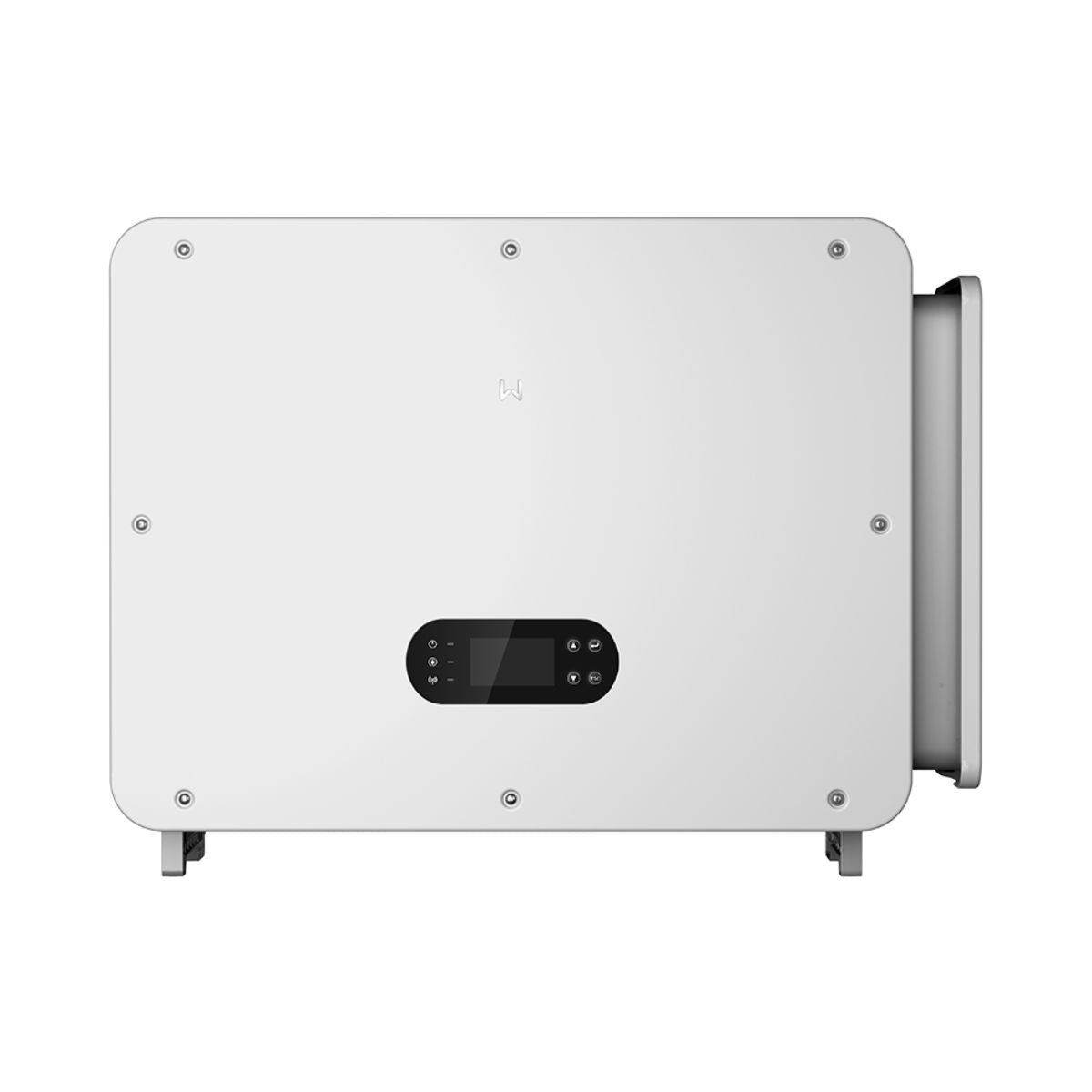

GoodWe ET Series 100kW HV Three Phase Hybrid Inverter
R72,873.00
GoodWe ET Series 100kW HV Three Phase Hybrid Inverter – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
The inverter is the brain of any solar or backup system, seamlessly managing solar, battery and grid power and switching to backup in milliseconds when the grid goes down.
The GoodWe ET Series 100kW HV Three Phase Hybrid Inverter by GoodWe is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Seamlessly manages solar, battery and grid power
- Fast automatic switchover the moment the grid drops
- Works with leading lithium batteries
- Remote/app monitoring where supported
Specifications
| Specification | Detail |
|---|---|
| Brand | GoodWe |
| Series | ET Series |
| Model | GW100K-ET-G10 |
| Product Type | Three-phase high-voltage hybrid inverter |
| Application Class | Commercial & Industrial energy storage |
| Battery Type | Li-Ion |
| Nominal Battery Voltage | 600V |
| Battery Voltage Range | 300-800V |
| Battery Inputs | 2 |
| Max. Continuous Charging Current | 110 x 2 A |
| Max. Continuous Discharging Current | 110 x 2 A |
| Max. Charging Power | 110kW |
| Max. Discharging Power | 110kW |
| Max. PV Input Power | 200kW |
| Max. PV Input Voltage | 1000V |
| MPPT Operating Voltage Range | 160-950V |
| Start-up Voltage | 200V PV / 300V battery |
| Nominal PV Input Voltage | 620V |
| Number of MPPTs | 8 |
| Strings per MPPT | 2 |
| Max. MPPT Current | 42 x 8 A |
| Max. MPPT Short Circuit Current | 55 x 8 A |
| Nominal AC Power | 100kW |
| Max. AC Power | 110kW |
| Nominal Apparent Power from / to Grid | 100kVA |
| Max. Apparent Power to Grid | 110kVA |
| Max. Apparent Power from Grid | 110kVA |
| Nominal AC Voltage | 220 / 380V, 230 / 400V, 240 / 415V, 3L / N / PE |
| AC Voltage Range | 180-280V |
| Nominal Frequency | 50 / 60Hz |
| Power Factor | 0.8 leading to 0.8 lagging |
| THDi | <3% |
| Backup Nominal Apparent Power | 100kVA |
| Backup Max. Apparent Power | 110kVA |
| On / Off-grid Switching Time | <4ms |
| Generator Interface | Generator start-stop control via DI/DO interfaces |
| Max. Efficiency | 98.1% |
| European Efficiency | 97.7% |
| Max. Battery to AC Efficiency | 98.2% |
| MPPT Efficiency | 99.9% |
| Operating Temperature Range | -35 to +60°C |
| Relative Humidity | 0-100% |
| Max. Operating Altitude | 4000m |
| Cooling Method | Smart fan cooling |
| User Interface | LED, optional LCD, WLAN + app |
| Communication with BMS | CAN |
| Communication | RS485, WiFi + LAN + Bluetooth, optional 4G + Bluetooth |
| Communication Protocols | Modbus-RTU, Modbus-TCP |
| Protection Rating | IP66 |
| Anti-corrosion Class | C4 |
| Noise Emission | <60dB |
| Night-time Self-consumption | <15W |
| Dimensions | 995 x 758 x 358mm |
| Weight | 97kg |
| Mounting Method | Wall mounted |
