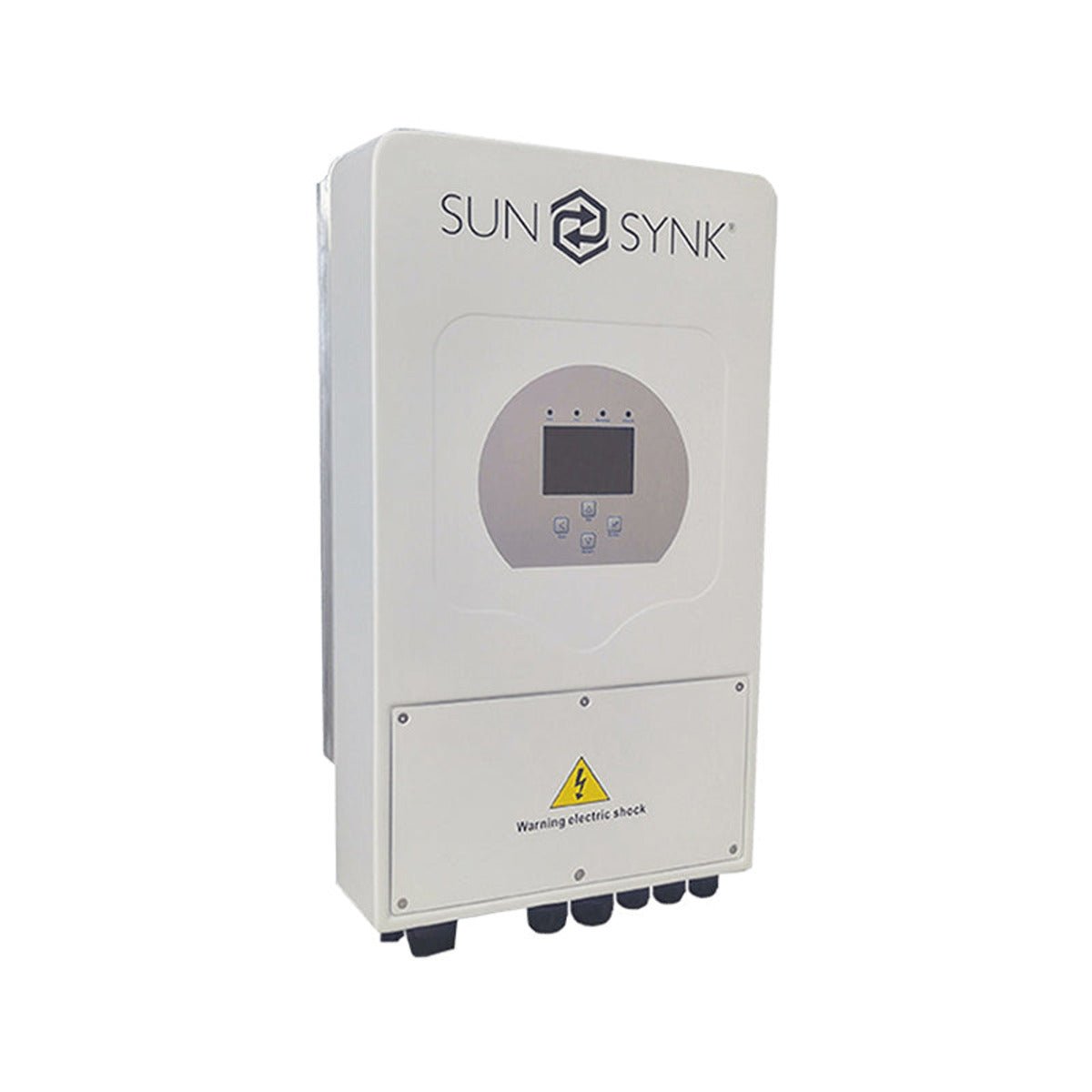

Sunsynk 5kW 48V Single Phase Hybrid Inverter

Description

Overview

The inverter is the brain of any solar or backup system, seamlessly managing solar, battery and grid power and switching to backup in milliseconds when the grid goes down.

The Sunsynk 5kW 48V Single Phase Hybrid Inverter by Sunsynk is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.

Why buy from B&B Solar Power Solutions SA?

• Seamlessly manages solar, battery and grid power
• Fast automatic switchover the moment the grid drops
• Works with leading lithium batteries
• Remote/app monitoring where supported

Specifications

Model	SYNK-5K-SG01LP1
Battery Type	Lead-acid or Li-Ion
Battery Voltage Range	48Vd.c (40Vd.c ~ 60Vd.c)
Max. Charging/Discharging Current	120Ad.c (max.)
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li	Ion Battery: Self-adaption to BMS
Max. DC Input Power	6500W
PV Input Voltage	370V (125V~500V)
MPPT Range	150~425V
Full Load DC Voltage Range	300~425V
Start	up Voltage: 125V
PV Input Current	13Ad.c + 13Ad.c
No. of MPPT Trackers	2
No. of Strings Per MPPT Tracker	1+1
Rated AC Output and UPS Power	5000W
Max. AC Output Power	5500W
Peak Power(off grid)	2 times of rated power, 10s
AC Output Rated Current	22.7/21.7Aa.c
Max. AC Current	25/23.9Aa.c
Max. Continuous AC Passthrough	35A
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 220/230 (single phase)
Grid Type	Single Phase
Total Harmonic Distortion (THD)	<3% (of nominal power)
DC current injection	<0.5% ln
Max. Efficiency	97.60%
Euro Efficiency	96.50%
MPPT Efficiency	>99%
PV Input Lightning Protection	Integrated
Anti	islanding Protection: Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Surge Protection	DC Type II / AC Type II
Over Voltage Category	DC Type II / AC Type III
EMC/Safety Regulation	ion IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Operating Temperature Range	-40~60 ºC, >45 ºC Derating
Cooling	Smart cooling
Noise	<30 dB
Communication with BMS	RS485; CAN
Weight	20.5kg
Cabinet size	330W×580H×232D mm (Excluding connectors and brackets)
