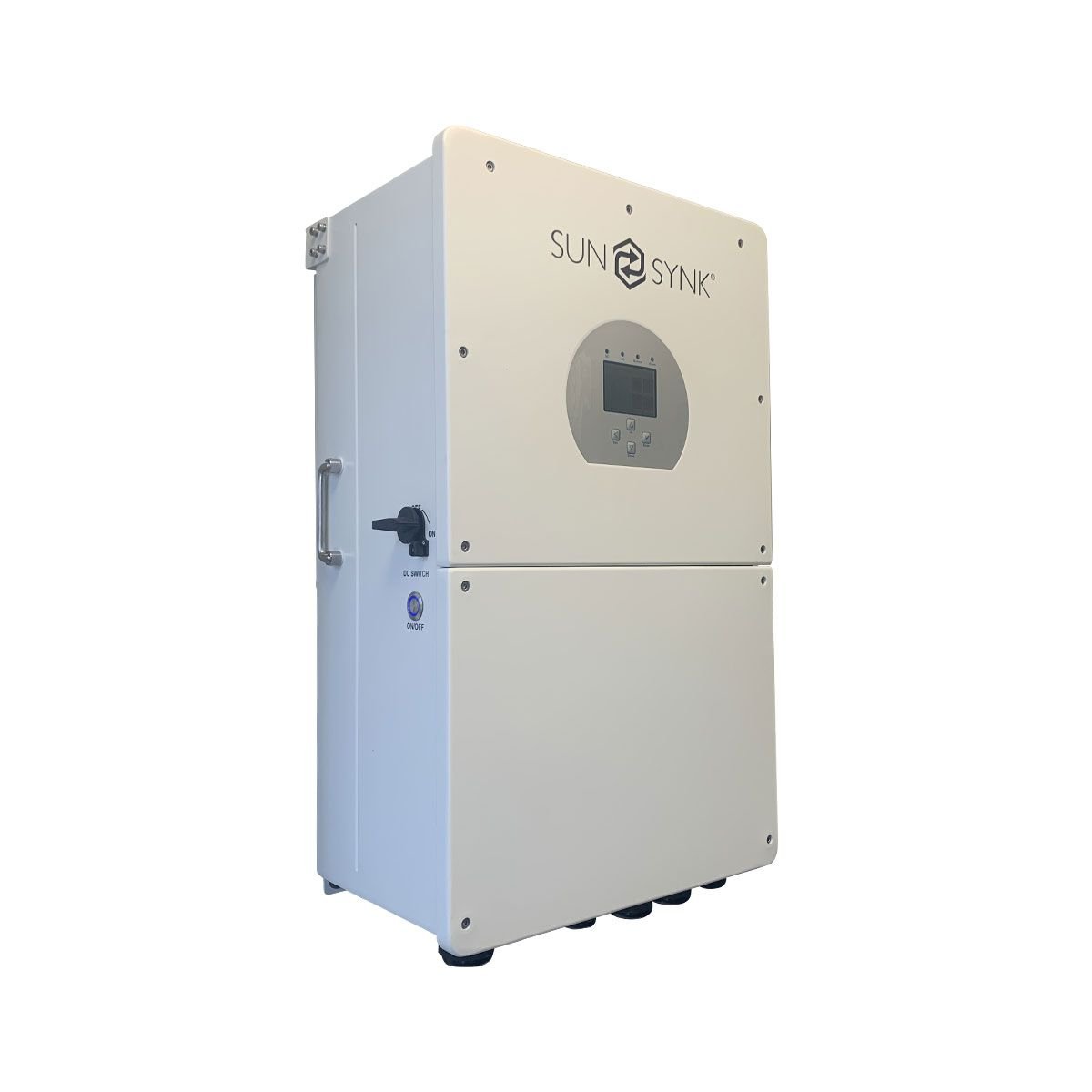

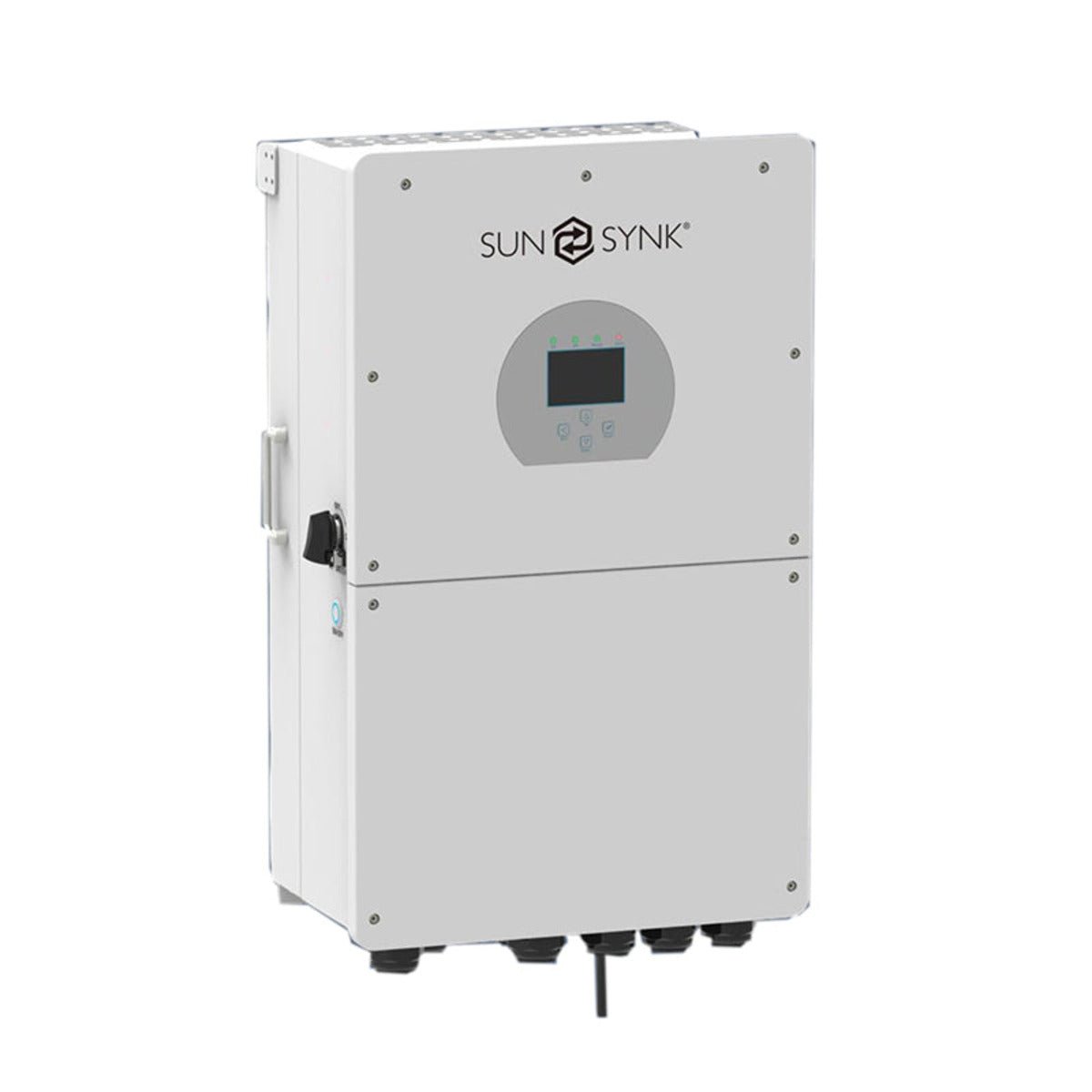

Sunsynk 16kW 48V Single Phase Hybrid Inverter
R37,931.00
Sunsynk 16kW 48V Single Phase Hybrid Inverter – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
The inverter is the brain of any solar or backup system, seamlessly managing solar, battery and grid power and switching to backup in milliseconds when the grid goes down.
The Sunsynk 16kW 48V Single Phase Hybrid Inverter by Sunsynk is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Seamlessly manages solar, battery and grid power
- Fast automatic switchover the moment the grid drops
- Works with leading lithium batteries
- Remote/app monitoring where supported
Specifications
| Supporting Wi | Fi or GSM monitoring |
|---|---|
| Parallel/Multi invert function grid | tied and off-grid |
| Self | consumption and feed-in to the grid |
| Programmable multiple operation modes | on-grid/off-grid & UPS |
| Battery type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 43~60V |
| Max. Charging Current | 275A |
| Max. Discharging Current | 300A |
| Charging Curve | 3 Stages / Equalisation |
| External Temperature Sensor | Yes |
| Charging Strategy for Li | Ion Battery: Self-Adaptation to BMS |
| Max. DC Input Power | 18000W |
| Max PV Input Voltage | 450V |
| MPPT Range | 250V~450V |
| Start | up Voltage: 150V |
| PV Input Current | 22A + 22A |
| Max. PV Isc | 26A + 26A |
| No. of MPPT / Strings Per MPPT | 3/2 |
| Max. On | Grid AC Power: 16000W |
| Max. Off | Grid AC Power: 13000W |
| Peak Power (off | grid): 2 times of rated power, 10 S |
| AC Output Rated Current | 65A |
| Max AC Current | 70A |
| Max Continuous AC Passthrough | 200A |
| Frequency Range | 45Hz ~55Hz |
| Voltage Range | 211V ~ 264V |
| Grid Type | Single-Phase |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 97% |
| MPPT Efficiency | 99.9% |
| Grid Regulation | VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05 |
| Safety EMC / Standard | IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3 |
| Operating Temperature Range | -25~55°C |
| Cooling | Fan |
| Noise | <30dB |
| Communication with BMS | RS485; CAN |
| Weight | 34.5Kg |
| Size (mm) | 422W x 702H x 281D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 Years |
| SA | NRS 097 certified and COCT Certified |
