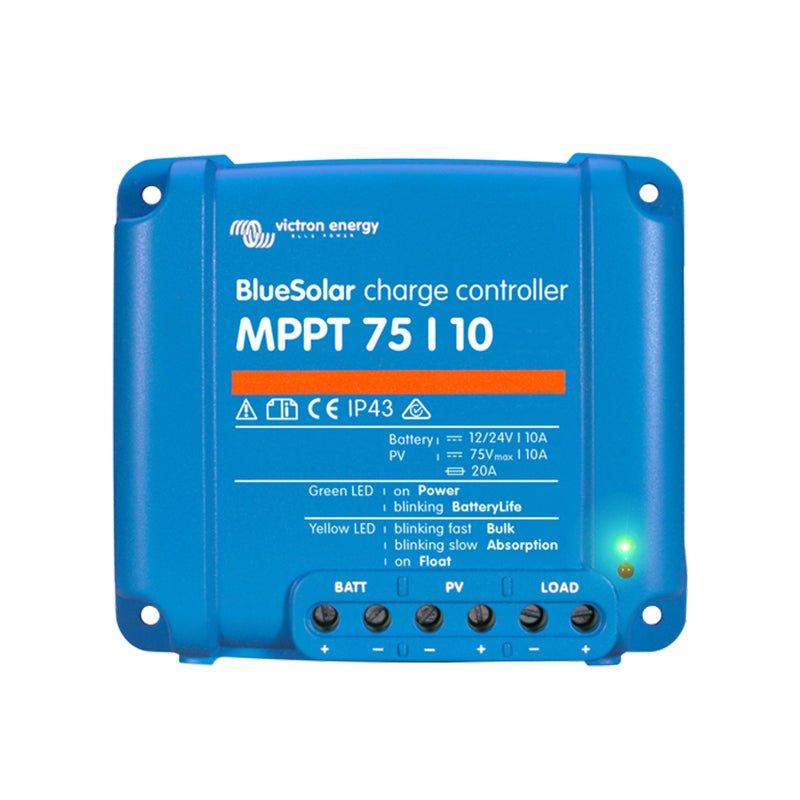

Victron Blue Solar 75V-10A MPPT Charge Controller
R601.00
Victron Blue Solar 75V-10A MPPT Charge Controller – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Get the most out of every ray of sun. This charge controller maximises solar harvest and protects your battery bank for safe, efficient off-grid and backup charging.
The Victron Blue Solar 75V-10A MPPT Charge Controller by Victron Energy is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Maximises solar harvest and charging efficiency
- Protects and extends the life of your battery bank
- Ideal for off-grid and backup systems
- Proven, reliable technology
Specifications
| BlueSolar charge controller | MPPT 75/10. |
|---|---|
| Battery voltage | 12/24 V (Auto Select). |
| Rated charge current | 10 A. |
| Maximum PV power @ 12V | 145 W (MPPT range 15 V to 70 V resp. 95 V). |
| Maximum PV power @ 24V | 290 W (MPPT range 30 V to 70 V resp. 95 V). |
| Automatic load disconnect | Yes (maximum load 10 A). |
| Maximum PV open circuit voltage | 75 V. |
| Peak efficiency | 98 %. |
| Charge voltage 'absorption' | 14,4 V / 28,8 V. |
| Charge voltage 'float' | 13,8 V / 27,6 V. |
| Charge algorithm | Multi-stage adaptive. |
| Temperature compensation | -16 mV / °C resp. -32 mV / °C. |
| Continuous/peak load current | 15A / 50A. |
| Low voltage load disconnect | 11,1 V / 22,2 V or 11,8 V / 23,6 V or Battery Life algorithm. |
| Low voltage load reconnect | 13,1 V / 26,2 V or 14 V / 28 V or Battery Life algorithm. |
| Operating temperature | -30 to +60°C (full rated output up to 40°C). |
| Humidity | 100 %, non-condensing. |
| Data communication port | VE.Direct. |
| Colour | Blue (RAL 5012) |
| Power terminals | 6 mm² / AWG10 |
| Protection category | IP43 (electronic components), IP22 (connection area). |
| Weight | 0,5 kg. |
| Dimensions (h x w x d) | 100 mm x 113 mm x 40 mm. |
Buy with confidence from B&B Solar Power Solutions SA
B&B Solar Power Solutions SA is your trusted supplier of solar power, water heating and energy-efficiency products, with fast, reliable delivery to homes and businesses across all nine provinces – from East London to Pietermaritzburg and everywhere in between. We stock only genuine, warrantied products at competitive prices, and our team is happy to help you size the right system for your needs.
🚚 Enjoy FREE delivery on orders over R10,000 – use code BBSPS26 at checkout. Ready to order or need a quote? Contact us today.
Reviews
There are no reviews yet.
