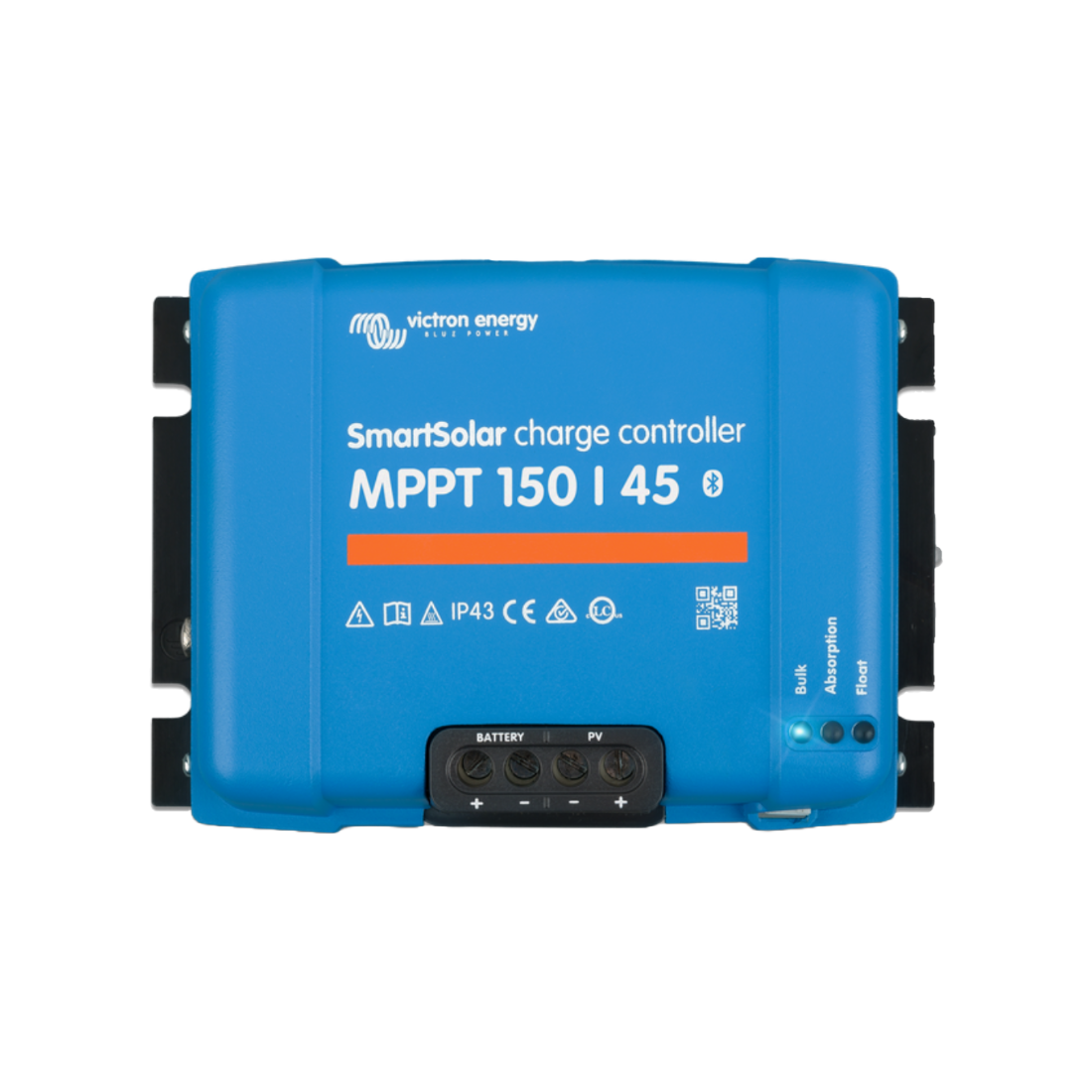

Victron SmartSolar 150V-45A MPPT Charge Controller

Description

Overview

Get the most out of every ray of sun. This charge controller maximises solar harvest and protects your battery bank for safe, efficient off-grid and backup charging.

The Victron SmartSolar 150V-45A MPPT Charge Controller by Victron Energy is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.

Why buy from B&B Solar Power Solutions SA?

• Maximises solar harvest and charging efficiency
• Protects and extends the life of your battery bank
• Ideal for off-grid and backup systems
• Proven, reliable technology

Specifications

Battery voltage	12/24/48V Auto Select (software tool needed to select 36V).
Rated charge current	45A.
Nominal PV power, 12V	650W.
Nominal PV power, 24V	1300W.
Nominal PV power, 36V	1950W.
Nominal PV power, 48V	2600W.
Max. PV short circuit current	50A.
Maximum PV open circuit voltage	150V absolute maximum coldest conditions (145V start-up and operating maximum).
Maximum efficiency	98%.
Self	consumption: < 35mA @ 12V / 20mA @ 48V.
Charge voltage 'absorption' Default setting	14,4 / 28,8 / 43,2 / 57,6V (adjustable).
Charge voltage 'float' Default setting	13,8 / 27,6 / 41,4 / 55,2V (adjustable).
Charge voltage 'equalization' Default setting	16,2V / 32,4V / 48,6V / 64,8V (adjustable)
Temperature compensation	-16 mV / -32 mV / -64 mV / °C.
Operating temperature	-30 to +60°C (full rated output up to 40°C).
Humidity	95%, non-condensing.
Maximum altitude	5000m (full rated output up to 2000m).
Environmental condition	Indoor, unconditioned.
Pollution degree	PD3.
Data communication port	VE. Direct or Bluetooth.
Remote on/off	Yes (2 pole connector).
Programmable relay	DPST AC rating (240VAC) / 4A DC rating (4A up to 35VDC, 1A up to 60VDC).
Parallel operation	Yes (not synchronized).
Colour	Blue (RAL 5012).
Power terminals	16mm² / AWG6
Protection category	IP43 (electronic components), IP22 (connection area).
Weight	1.25 kg.
Dimensions (h x w x d) in mm	130mm x 186mm x 70mm.
Self-consumption	< 35mA @ 12V / 20mA @ 48V
