Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System

Description

Overview

Premium solar power equipment to help you generate, store and manage your own clean electricity across South Africa.

The Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System by Sunsynk is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.

Why buy from B&B Solar Power Solutions SA?

• Quality, warrantied product from trusted brands
• Fair, competitive pricing
• Fast, reliable delivery across South Africa
• Expert advice whenever you need it

Specifications

Installed Capacity (kWp, STC)	6,060 Wp
Orientation	0° from North
Inclination	35° from horizontal
Shade Factor (SF)	1.00
Estimated Annual Output	11,936 kWh
2 x MC4	EVO2 Connector Twin Pack
2 x MC4 Pre	terminated Cable (2m)
2 x B&B 70mm² Single	core HV DC Cable (1m – Pair)
Nominal Max. Power (Pmax)	550W
Opt. Operating Voltage (Vmp)	41.6V
Opt. Operating Current (Imp)	13.21 A
Open Circuit Voltage (Voc)	49.8 V
Short Circuit Current (Isc)	14:02 A
Module Efficiency	21.3%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1500V DC (IEC)
Module Fire Performance	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
Max. Series Fuse Rating	25 A
Phases	1
Number of MPPT	2
Rated AC Power	8,000 W
Max DC Current	35.50 A
Voltage	500 V
PP Voltage	125 V – 425 V Max
Quantity	1
String Quantity	2
Strings Configuration	(1×12) (1×12)
String Voc at 0°C	519.6 V
Input Isc at 80°C	10.02 A
Distance to Array	12 m
Cable Area	6 mm²
Voltage Drop	0.51%
System Type	Full Hybrid
Battery Type	Lithium-Ion
Usable Battery Capacity	5120 Wh
Max Charge Current	50 A
Max Discharge Current	100 A
Weight	490.36 kg

Buy with confidence from B&B Solar Power Solutions SA

B&B Solar Power Solutions SA is your trusted supplier of solar power, water heating and energy-efficiency products, with fast, reliable delivery to homes and businesses across all nine provinces – from Mbombela to Cape Town and everywhere in between. We stock only genuine, warrantied products at competitive prices, and our team is happy to help you size the right system for your needs.

🚚 Enjoy FREE delivery on orders over R10,000 – use code BBSPS26 at checkout. Ready to order or need a quote? Contact us today.

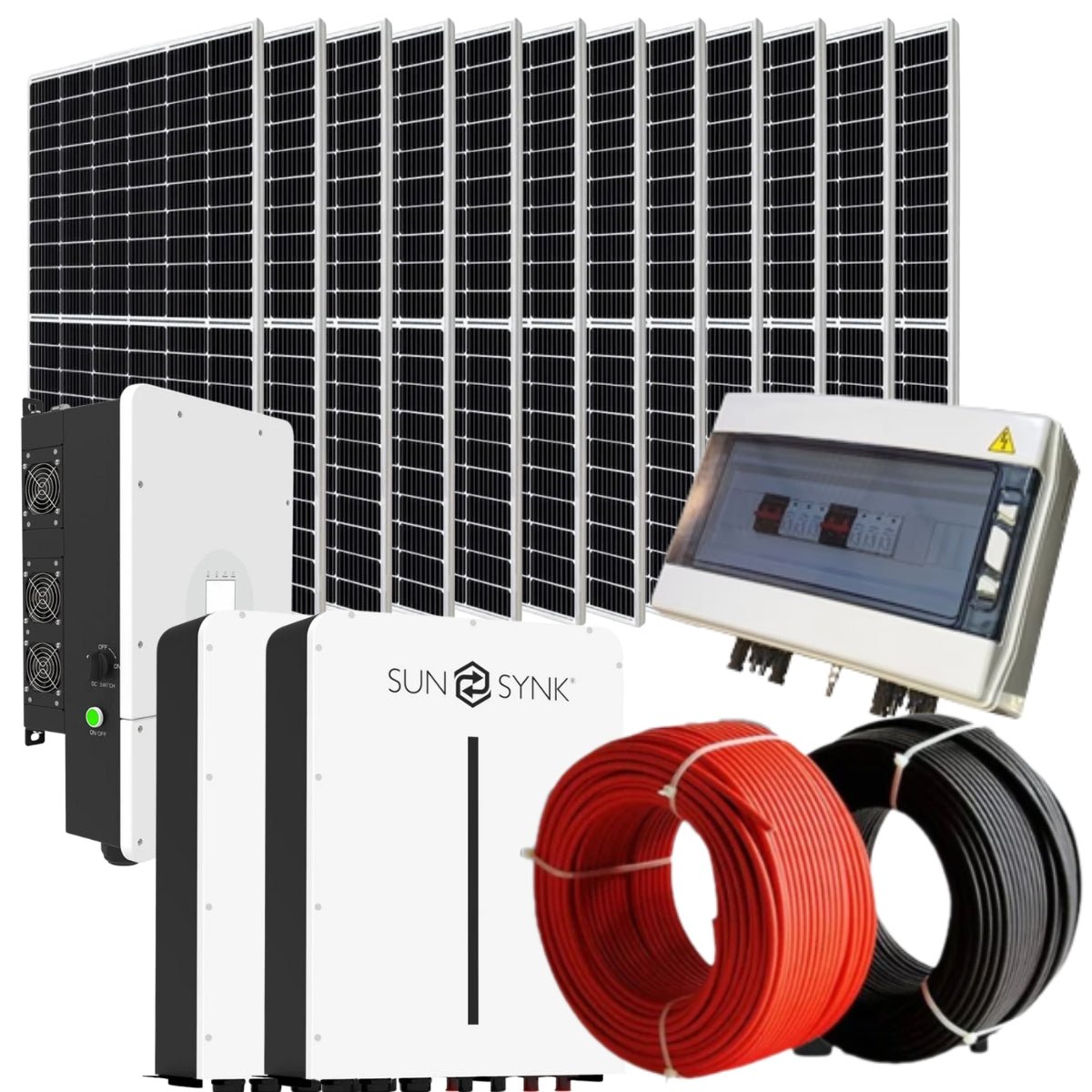

What’s Included in This Kit

• 1 × SunSynk 8KW 48V Single Phase Hybrid Inverter — R21,662
• 2 × Sunsynk X Series 5.1kWh 51.2V Lithium Battery — R17,496
• 12 × Jinko Tiger Neo 590W TOPCon N-Type Dual Glass Bifacial Solar Panel — R1,852
• 1 × PV on Roof and Hazard Labels Pack — R195
• 2 × MC4-EVO2 Connector Twin Pack — R78
• 2 × MC4 Pre-terminated Cable (2m) — R115
• 2 × K&N 40A Single Phase AC Switch Disconnector
• 1 × Earth Neutral Bridge Single Phase 50A AC Protection Box
• 1 × 600V Protection Box (2 Inputs, 2 Outputs, 16A Isolator Type I_II SPD) — R5,342
• 2 × Sustainable 70mm² Single-core HV DC Cable (1m – Pair)
• 1 × 12) (1×12)

Buy Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System Online in South Africa

Order the Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System from B&B Solar Power Solutions SA with fast, tracked delivery to Sandton and every South African province. Enjoy free delivery on orders over R10,000 with code BBSPS26. Get a free quote or contact our team for expert advice.
