Sunsynk 5kW 5.12kWh 51.2V Self Consumption Solar Power System

Description

Overview

Premium solar power equipment to help you generate, store and manage your own clean electricity across South Africa.

The Sunsynk 5kW 5.12kWh 51.2V Self Consumption Solar Power System by Sunsynk is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.

Why buy from B&B Solar Power Solutions SA?

• Quality, warrantied product from trusted brands
• Fair, competitive pricing
• Fast, reliable delivery across South Africa
• Expert advice whenever you need it

Specifications

Installed Capacity (kWp, STC)	4,545 Wp
Orientation	0° from North
Inclination	35° from horizontal
Shade Factor (SF)	1.00
Estimated Annual Output	7,290 kWh
2 x MC4	EVO2 Connector Twin Pack
2 x MC4 Pre	terminated Cable (2m)
2 x Single Core 25mm² HV DC Cable (1m	Pair)
Nominal Max. Power (Pmax)	590W
Opt. Operating Voltage (Vmp)	44.14V
Opt. Operating Current (Imp)	13.36 A
Open Circuit Voltage (Voc)	52.90 V
Short Circuit Current (Isc)	14:07 A
Module Efficiency	22.8%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1500V (IEC)
Module Fire Performance	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
Max. Series Fuse Rating	25 A
Phases	1
Number of MPPT	2
Rated AC Power	5,000 W
Max DC Current	28.60 A
Voltage	500 V
PP Voltage	125 V – 425 V Max
Quantity	1
String Quantity	2
Strings Configuration	(1×9) (1×9)
String Voc at 0°C	424.8 V
Input Isc at 80°C	10.02 A
Distance to Array	12 m
Cable Area	6 mm²
Voltage Drop	0.51%
System Type	Full Hybrid
Battery Type	Lithium-Ion
Usable Battery Capacity	5,120 Wh
Max Charge Current	50 A
Max Discharge Current	100 A
Weight	336.58 kg

Buy with confidence from B&B Solar Power Solutions SA

B&B Solar Power Solutions SA is your trusted supplier of solar power, water heating and energy-efficiency products, with fast, reliable delivery to homes and businesses across all nine provinces – from Pretoria to Mbombela and everywhere in between. We stock only genuine, warrantied products at competitive prices, and our team is happy to help you size the right system for your needs.

🚚 Enjoy FREE delivery on orders over R10,000 – use code BBSPS26 at checkout. Ready to order or need a quote? Contact us today.

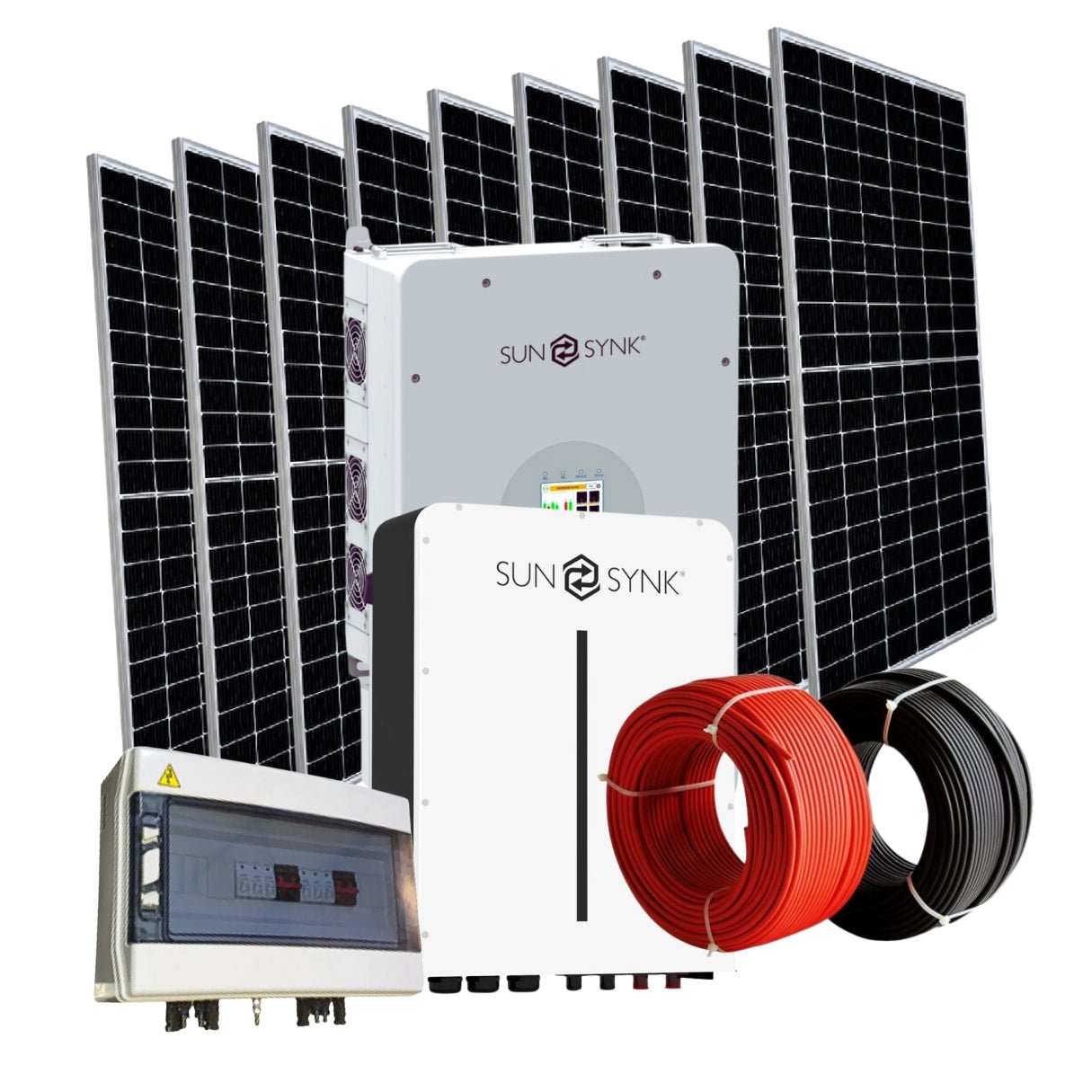

What’s Included in This Kit

• 1 × Sunsynk X Series 5.1kWh 51.2V Lithium Battery — R17,496
• 1 × Sunsynk 5KW 48V Single Phase Hybrid Inverter — R16,068
• 9 × Jinko Tiger Neo 590W TOPCon N-Type Dual Glass Bifacial Solar Panel — R1,852
• 1 × PV on Roof and Hazard Labels Pack — R195
• 2 × MC4-EVO2 Connector Twin Pack — R78
• 2 × MC4 Pre-terminated Cable (2m) — R115
• 2 × K&N 40A Single Phase AC Switch Disconnector
• 1 × Earth Neutral Bridge Box 25A AC Protection — R936
• 1 × 600V Protection Box (2 Inputs, 2 Outputs, 16A Isolator Type I_II SPD) — R5,342
• 2 × Single Core 25mm² HV DC Cable (1m – Pair)
• 50 × Sustainable 4mm² Black Double Insulated Halogen Free Solar Cable
• 1 × 9) (1×9)
