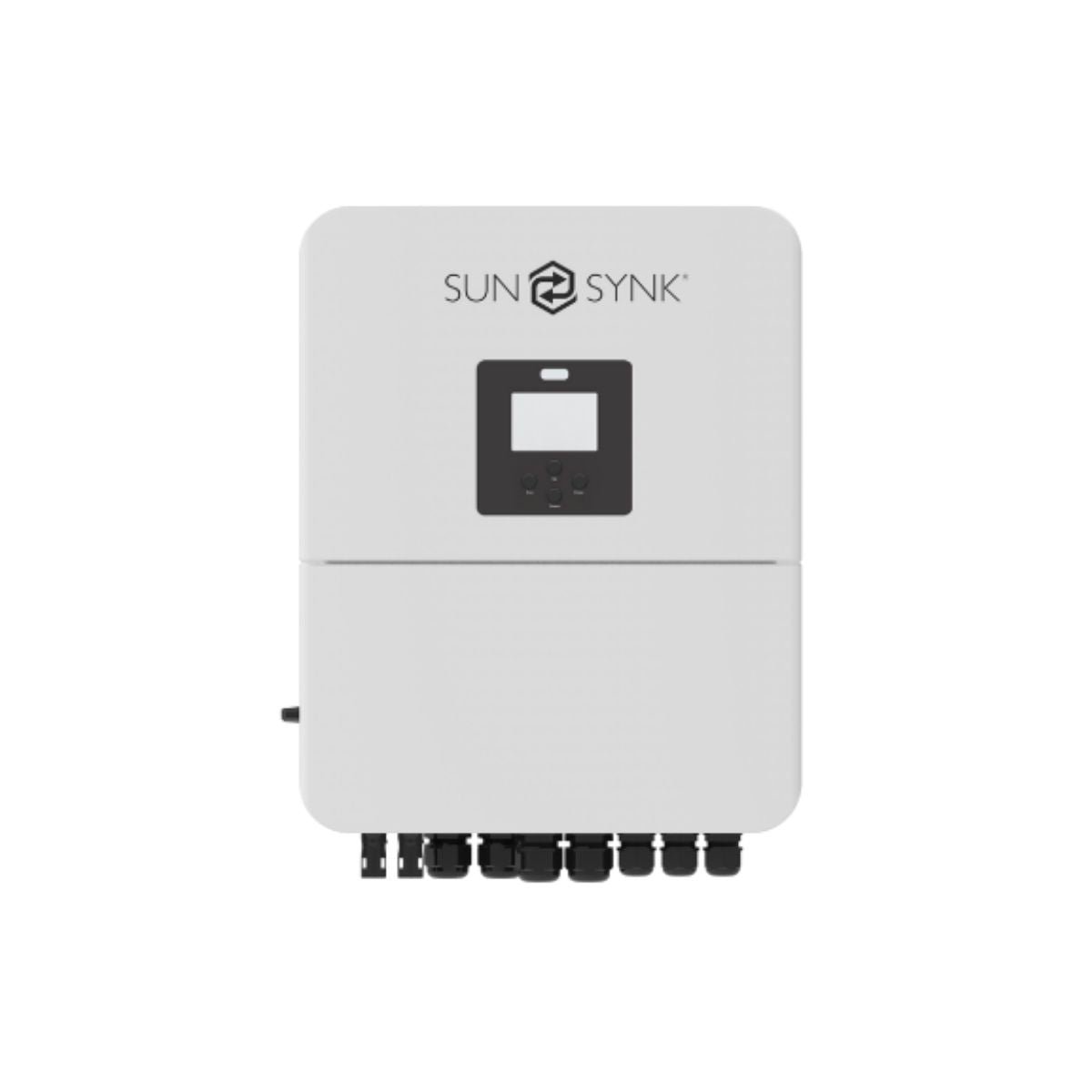

Sunsynk 5kW 48V Single Phase Compact Hybrid Inverter
R16,657.00
Sunsynk 5kW 48V Single Phase Compact Hybrid Inverter – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
The inverter is the brain of any solar or backup system, seamlessly managing solar, battery and grid power and switching to backup in milliseconds when the grid goes down.
The Sunsynk 5kW 48V Single Phase Compact Hybrid Inverter by Sunsynk is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Seamlessly manages solar, battery and grid power
- Fast automatic switchover the moment the grid drops
- Works with leading lithium batteries
- Remote/app monitoring where supported
Specifications
| Standard 5 | year warranty included |
|---|---|
| Model | SYNK-5K-SG04LP1-SM2 |
| Inverter Type | Single-Phase Hybrid |
| Topology | Non-Isolated |
| Cooling | Natural Cooling |
| Ingress Protection | IP65 |
| Noise Level | <30dB |
| Operating Temperature | -40°C to +60°C (derating above 45°C) |
| Humidity Range | 0–100% |
| Maximum Altitude | 2000m |
| Net Weight | 19kg |
| Dimensions (W × H × D) | 376 × 470 × 241.5 mm |
| Warranty | 5 years (10 years when installed with Sunsynk battery) |
| Battery Type | Lithium-ion or Lead-acid |
| Battery Voltage Range | 40–60V DC |
| Nominal Battery Input | 48V |
| Max Charge / Discharge Current | 120A DC |
| Number of Battery Inputs | 1 |
| Max PV Access Power | 10,000W |
| Max PV Input Power | 8,000W |
| Max PV Voltage | 500V |
| Start | Up Voltage: 125V |
| PV Voltage Range | 125–500V |
| MPPT Voltage Range | 150–425V |
| Full Load MPPT Range | 300–425V |
| Rated PV Voltage | 370V |
| Number of MPPTs | 2 |
| Strings per MPPT | 1 + 1 |
| Max PV Input Current | 18A + 18A |
| Max Short | Circuit Current: 27A + 27A |
| Rated Output Power | 5,000W |
| Max Apparent Power | 5,500VA |
| Peak Off | Grid Power: 10,000W (10 seconds) |
| Rated AC Current | 22.8A / 21.8A |
| Max AC Current | 25A / 24A |
| Max Continuous AC Pass | Through: 35A |
| Rated Voltage | 220V / 230V (0.85Un – 1.1Un) |
| Grid Frequency | 50Hz / 60Hz |
| Grid Connection | L + N + PE |
| Power Factor Range | 0.8 leading to 0.8 lagging |
| Total Harmonic Distortion (THDi) | <3% |
| DC Injection Current | <0.5% |
| Max Efficiency | 97.6% |
| European Efficiency | 96.5% |
| MPPT Efficiency | >99% |
