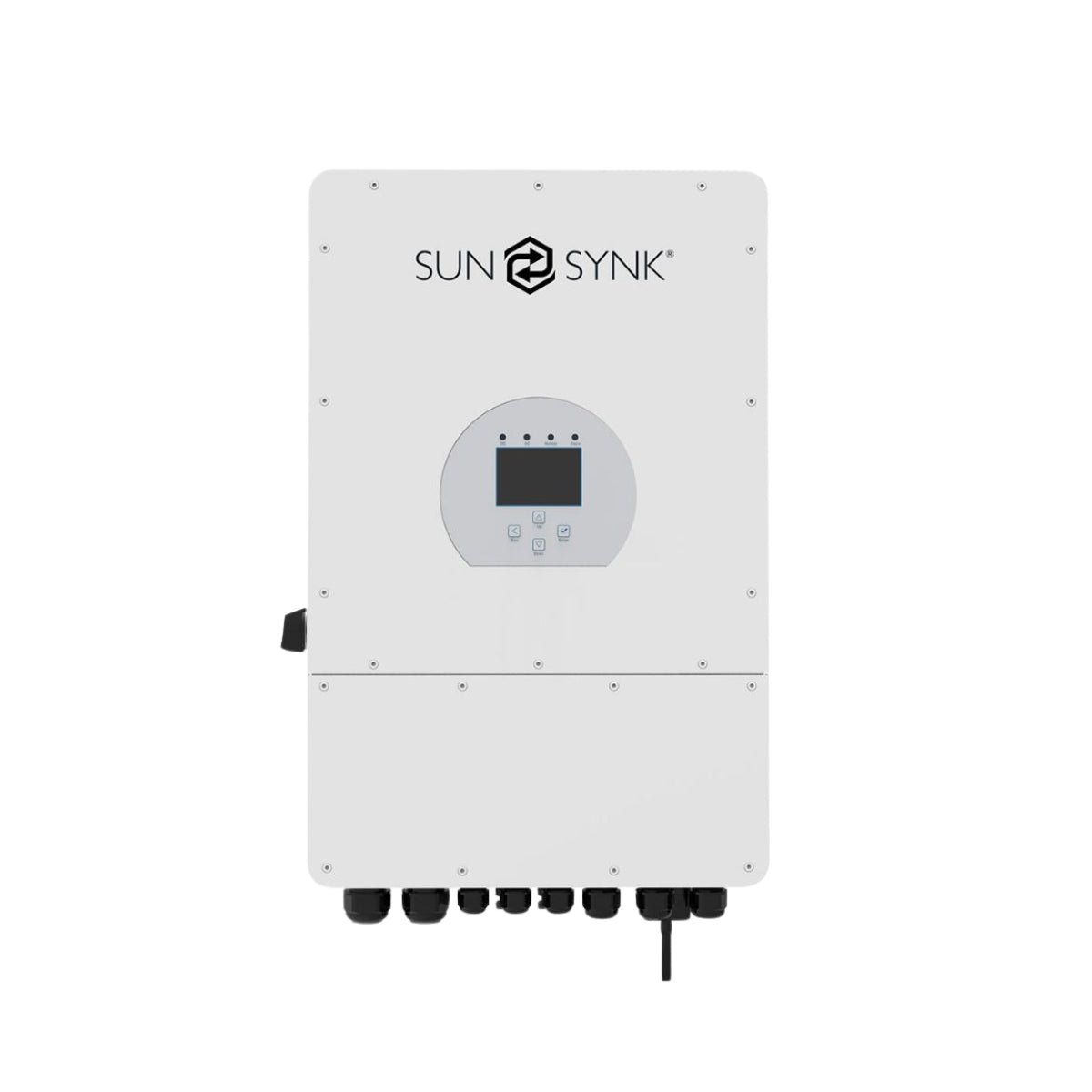

Sunsynk 10kW 48V Single Phase Hybrid Inverter
R28,804.00
Sunsynk 10kW 48V Single Phase Hybrid Inverter – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
The inverter is the brain of any solar or backup system, seamlessly managing solar, battery and grid power and switching to backup in milliseconds when the grid goes down.
The Sunsynk 10kW 48V Single Phase Hybrid Inverter by Sunsynk is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Seamlessly manages solar, battery and grid power
- Fast automatic switchover the moment the grid drops
- Works with leading lithium batteries
- Remote/app monitoring where supported
Specifications
| UPS (fuel | saving systems). |
|---|---|
| Battery Type | Lead-acid or Lithium-ion. |
| Battery Voltage Range | 40~60V. |
| Max. Charging Current | 220A. |
| Max. Discharging Current | 220A. |
| Charging Curve | 3 Stages/Equalization. |
| Charging Strategy for Li | Ion: Battery Self-adaption to BMS. |
| Max. DC Input Power | 13000W. |
| PV Input Voltage | 370V (125V~500) |
| Start | up Voltage: 125V |
| MPPT Range | 150V~425V. |
| Full Load Dc Voltage Range | 200V-425V |
| PV Input Current | 26A+26A+26A+ |
| Max. PV Isc | 44A+44A+44A |
| No. of Strings Per MPPT Tracker | 3 / 2+2+2 |
| Rated AC Output and UPS Power | 10000W. |
| Max. AC Power | 11000W. |
| AC Output Rated Current | 45.5/43.5A |
| Max AC Output Current | 50/47.9A |
| Max Continuous AC Passthrough | 70A. |
| Peak Power (Off Grid) | 2 Time of Rated Power, 10 S |
| Power Factor Adjustment Range | 0.8 Leading to 0.8 Lagging |
| Power Factor | 1 |
| Output Frequency and Voltage | 50 / 60Hz; L/N/PE 220/230Vac |
| Grid Type | Split Phase; 2/3 phase, Single Phase |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%). |
| DC Current Injection | <0.5% In |
| Max. Efficiency | 97.6%. |
| MPPT Efficiency | 97.0%. |
| Euro Efficiency | 99.9%. |
| Over Voltage Category | DC Type II/AC Type III |
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Operating Temperature Range | 40~60°C, >45°C Derating. |
| Cooling | Smart Cooling |
| Noise | ≤30 dB |
| Weight | 32kg. |
| Size | 420W×670H×233D mm (Excluding connectors and brackets) |
| Protection Degree | IP65. |
| Installation Style | Wall-mounted. |
| Warranty | 5 years. |
| SA | NRS 097 certified and COCT Certified |
| Charging Strategy for Li-Ion | Battery Self-adaption to BMS |
| Start-up Voltage | 125V |
