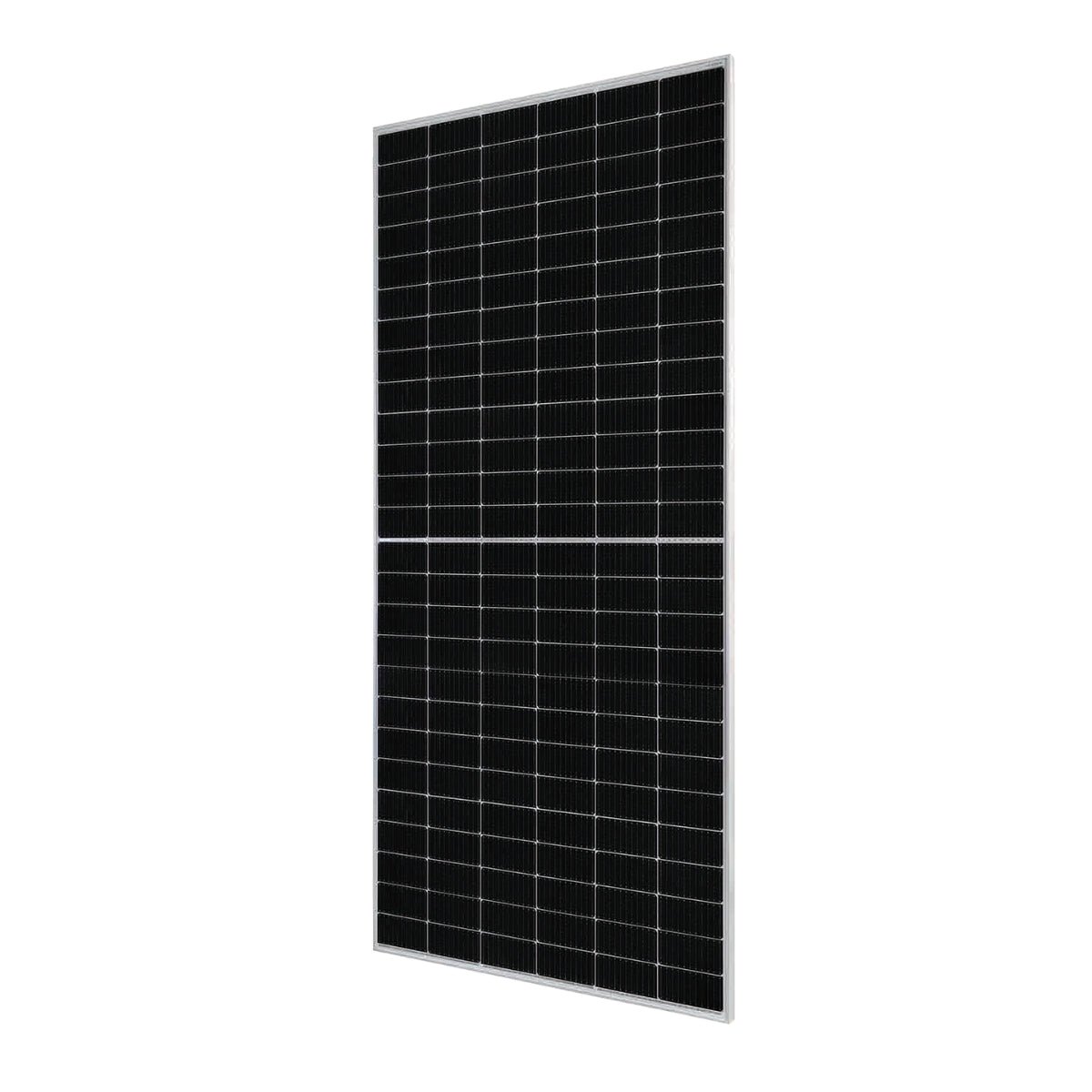

JA Solar 610W N-Type Double Glass Bifacial Solar Panel
R1,904.00
JA Solar 610W N-Type Double Glass Bifacial Solar Panel – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
This high-efficiency solar panel turns South Africa’s abundant sunshine into clean, free electricity for your home or business – cutting your Eskom bill and keeping the power on through load-shedding.
The JA Solar 610W N-Type Double Glass Bifacial Solar Panel by JA Solar is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- High-efficiency cells that deliver strong yield in South Africa’s high-sun climate
- Tough, weather- and hail-resistant build for local conditions
- Cut your Eskom bill and reduce the impact of load-shedding
- Backed by a manufacturer warranty
Specifications
| Specification | Detail |
|---|---|
| Brand | JA Solar |
| Model | JAM72D40-610/LB |
| Product Type | n-type double glass bifacial solar module |
| Rated Maximum Power (Pmax) | 610W |
| Module Efficiency | 23.1% |
| Power Tolerance | 0~+3% |
| Open Circuit Voltage (Voc) | 52.80V |
| Maximum Power Voltage (Vmp) | 44.11V |
| Short Circuit Current (Isc) | 14.57A |
| Maximum Power Current (Imp) | 13.83A |
| STC Conditions | Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
| Rated Max Power with 10% Rear-Side Irradiation | 659W |
| Voc with 10% Rear-Side Irradiation | 52.80V |
| Vmp with 10% Rear-Side Irradiation | 44.11V |
| Isc with 10% Rear-Side Irradiation | 15.74A |
| Imp with 10% Rear-Side Irradiation | 14.94A |
| Cell Type | Mono |
| Number of Cells | 144 (6 × 24) |
| Dimensions | 2333 ±2mm × 1134 ±2mm × 30 ±1mm |
| Weight | 32.5kg |
| Front Glass / Back Glass | 2.0mm / 2.0mm |
| Junction Box | IP68, 3 diodes |
| Connector | QC 4.10-351 / MC4-EVO2A |
| Cable Cross Section Size | 4mm² (IEC), 12 AWG (UL) |
| Cable Length Including Connector | Portrait: 300mm (+) / 400mm (-); Landscape: 1400mm (+) / 1400mm (-) |
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40°C~+85°C |
| Maximum Series Fuse Rating | 30A |
| Maximum Static Load, Front | 5400Pa |
| Maximum Static Load, Back | 2400Pa |
| NOCT | 45 ±2°C |
| Bifaciality | 80% ±5% |
| Safety Class | Class II |
| Fire Performance | UL Type 29 / Class C |
| Temperature Coefficient of Isc | +0.045%/°C |
| Temperature Coefficient of Voc | -0.250%/°C |
| Temperature Coefficient of Pmax | -0.290%/°C |
| Product Warranty | 12 years |
| Linear Power Output Warranty | 30 years |
| First-Year Degradation | 1% |
| Annual Degradation | 0.4% over 30 years |
| Packaging Configuration | 36pcs/pallet, 720pcs/40HQ container |
| Certifications Listed | IEC 61215, IEC 61730, UL 61215, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, IEC 62941:2019 |
