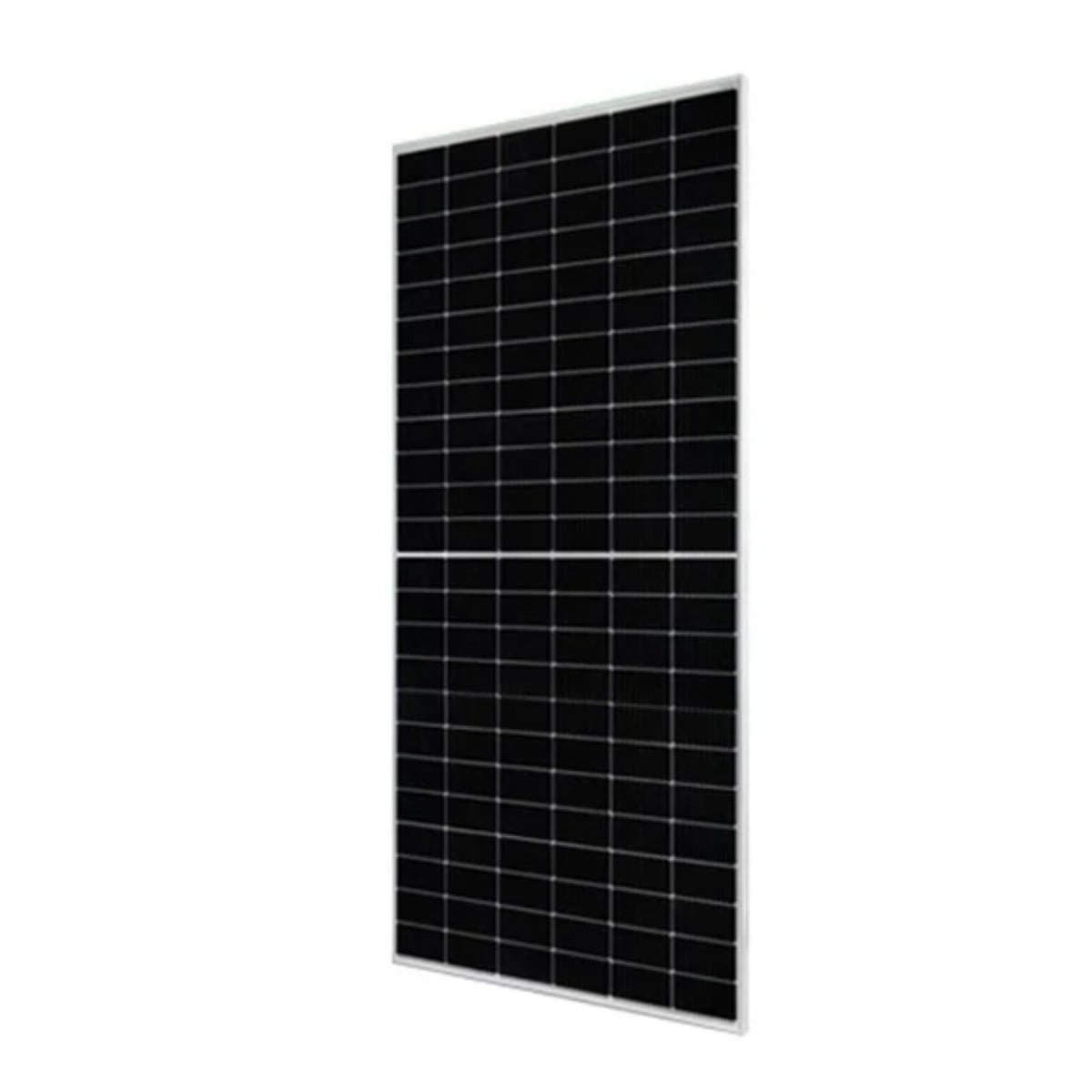

JA Solar 605W N-Type Bifacial Double Glass Solar Panel

Description

Overview

This high-efficiency solar panel turns South Africa’s abundant sunshine into clean, free electricity for your home or business – cutting your Eskom bill and keeping the power on through load-shedding.

The JA Solar 605W N-Type Bifacial Double Glass Solar Panel by JA Solar is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.

Why buy from B&B Solar Power Solutions SA?

• High-efficiency cells that deliver strong yield in South Africa’s high-sun climate
• Tough, weather- and hail-resistant build for local conditions
• Cut your Eskom bill and reduce the impact of load-shedding
• Backed by a manufacturer warranty

Specifications

Warranty Type	Details
Product Warranty	12 Years
Linear Power Warranty	30 Years
First Year Degradation	1%
Annual Degradation	0.4% over 30 years
Specification	Value
Model	JAM72D40-605LB
Cell Type	Mono 16BB
Number of Cells	144 (6 × 24)
Weight	32.5 kg
Dimensions	2333 × 1134 × 30 mm
Front / Back Glass	2.0 mm / 2.0 mm
Junction Box	IP68, 3 Diodes
Cable Cross Section	4 mm² (IEC), 12 AWG (UL)
Connector	QC 4010-351 / MC4-EVO2A
Cable Length	Portrait: 300mm (+) / 400mm (-), Landscape: 1300mm (+) / 1300mm (-)
Rated Maximum Power (Pmax)	653 W
Open Circuit Voltage (Voc)	52.60 V
Maximum Power Voltage (Vmp)	43.94 V
Short Circuit Current (Isc)	15.69 A
Maximum Power Current (Imp)	14.87 A
Module Efficiency	23.1%
Power Tolerance	0 ~ +3%
Parameter	Value
Temperature Coefficient of Isc	+0.045 % / °C
Temperature Coefficient of Voc	-0.220 % / °C
Temperature Coefficient of Pmax	-0.290 % / °C
Maximum System Voltage	1500 V DC
Operating Temperature	-40°C to +85°C
Maximum Series Fuse Rating	30 A
Maximum Static Load (Front)	5400 Pa
Maximum Static Load (Back)	2400 Pa
Nominal Operating Cell Temperature (NOCT)	45 ± 2°C
Bifaciality	80% ± 5%
Fire Performance	UL Type 29
High Power Output	605W: Delivers exceptional energy generation for residential, commercial, and industrial installations.
ISO9001	2015 – Quality Management System
ISO14001	2015 – Environmental Management System
ISO45001	2018 – Occupational Health and Safety Management Systems
IEC 62941	2019 – Quality System for PV Module Manufacturing
Portrait	300mm (+) / 400mm (-), Landscape: 1300mm (+) / 1300mm (-)
STC	Irradiance 1000 W/m², Cell Temperature 25°C, AM 1.5G
