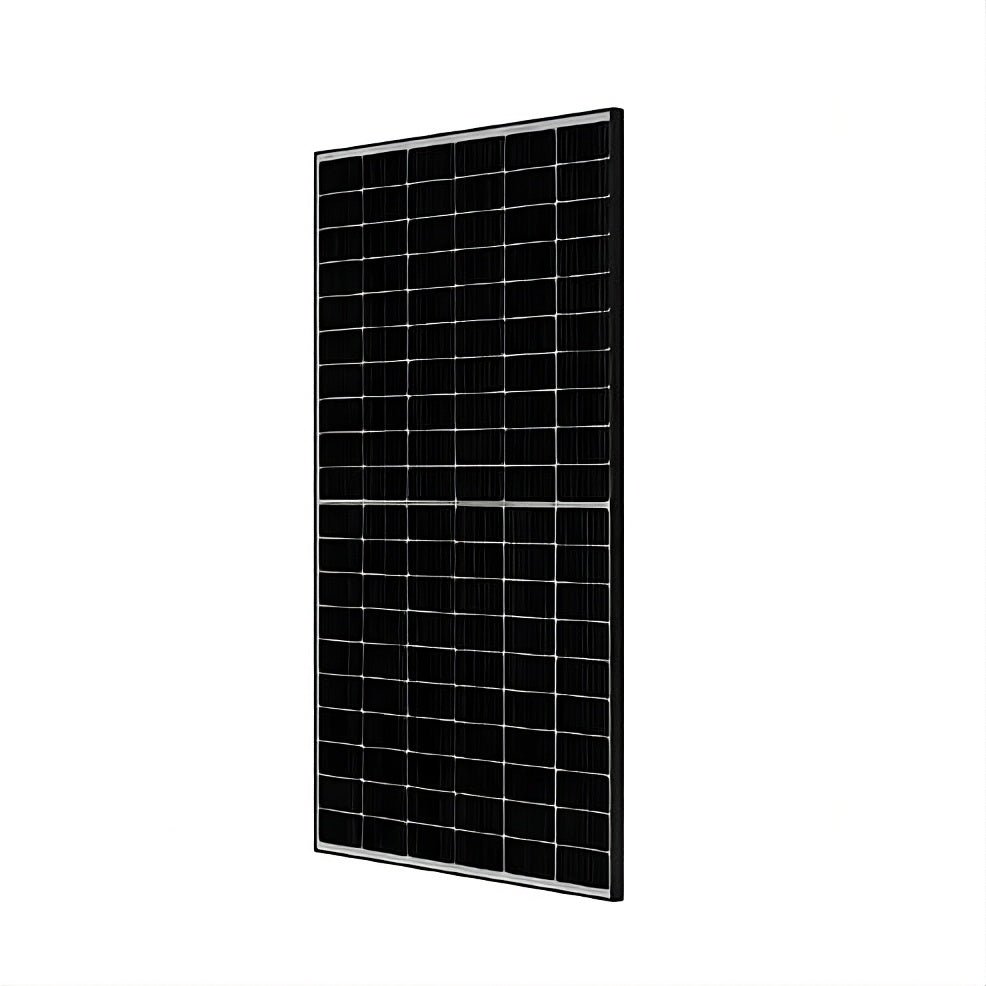

JA Solar 465W N-Type Black Frame Monofacial Double Glass Solar Panel
R1,546.00
JA Solar 465W N-Type Black Frame Monofacial Double Glass Solar Panel – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
This high-efficiency solar panel turns South Africa’s abundant sunshine into clean, free electricity for your home or business – cutting your Eskom bill and keeping the power on through load-shedding.
The JA Solar 465W N-Type Black Frame Monofacial Double Glass Solar Panel by JA Solar is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- High-efficiency cells that deliver strong yield in South Africa’s high-sun climate
- Tough, weather- and hail-resistant build for local conditions
- Cut your Eskom bill and reduce the impact of load-shedding
- Backed by a manufacturer warranty
Specifications
| Specification | Detail |
|---|---|
| Brand | JA Solar |
| Model | JAM54D40-465/LR |
| Product Type | n-type double glass monofacial solar panel |
| Frame | Black frame |
| Rated Maximum Power at STC | 465W |
| Module Efficiency | 23.3% |
| Power Tolerance | 0 to +3% |
| Open Circuit Voltage (Voc) at STC | 40.20V |
| Maximum Power Voltage (Vmp) at STC | 33.50V |
| Short Circuit Current (Isc) at STC | 14.65A |
| Maximum Power Current (Imp) at STC | 13.88A |
| Rated Maximum Power at NOCT | 352W |
| Open Circuit Voltage (Voc) at NOCT | 38.04V |
| Maximum Power Voltage (Vmp) at NOCT | 31.68V |
| Short Circuit Current (Isc) at NOCT | 11.72A |
| Maximum Power Current (Imp) at NOCT | 11.11A |
| Cell Type | Mono |
| Number of Cells | 108 cells (6 x 18) |
| Dimensions | 1762 ±2mm x 1134 ±2mm x 30 ±1mm |
| Weight | 22kg |
| Front Glass / Back Glass | 1.6mm / 1.6mm |
| Cable Cross Section Size | 4 sq.mm (IEC), 12 AWG (UL) |
| Cable Length Including Connector | Portrait: 400mm (+) / 200mm (-); Landscape: 1200mm (+) / 1200mm (-) |
| Connector | QC 4.10-351 / MC4-EVO2A |
| Junction Box | IP68, 3 diodes |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 25A |
| Operating Temperature | -40°C to +85°C |
| NOCT | 45 ±2°C |
| Temperature Coefficient of Isc | +0.045%/°C |
| Temperature Coefficient of Voc | -0.250%/°C |
| Temperature Coefficient of Pmax | -0.290%/°C |
| Maximum Static Load, Front | 5400Pa |
| Maximum Static Load, Back | 2400Pa |
| Safety Class | Class II |
| Fire Performance | UL Type 38 / Class C |
| Product Warranty | 25 years |
| Linear Power Output Warranty | 30 years |
| First-Year Degradation | 1% |
| Annual Degradation | 0.4% over 30 years |
| Packaging Configuration | 36 pcs/pallet, 936 pcs/40HQ container |
| Certifications Listed | IEC 61215, IEC 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, IEC 62941:2019 |
