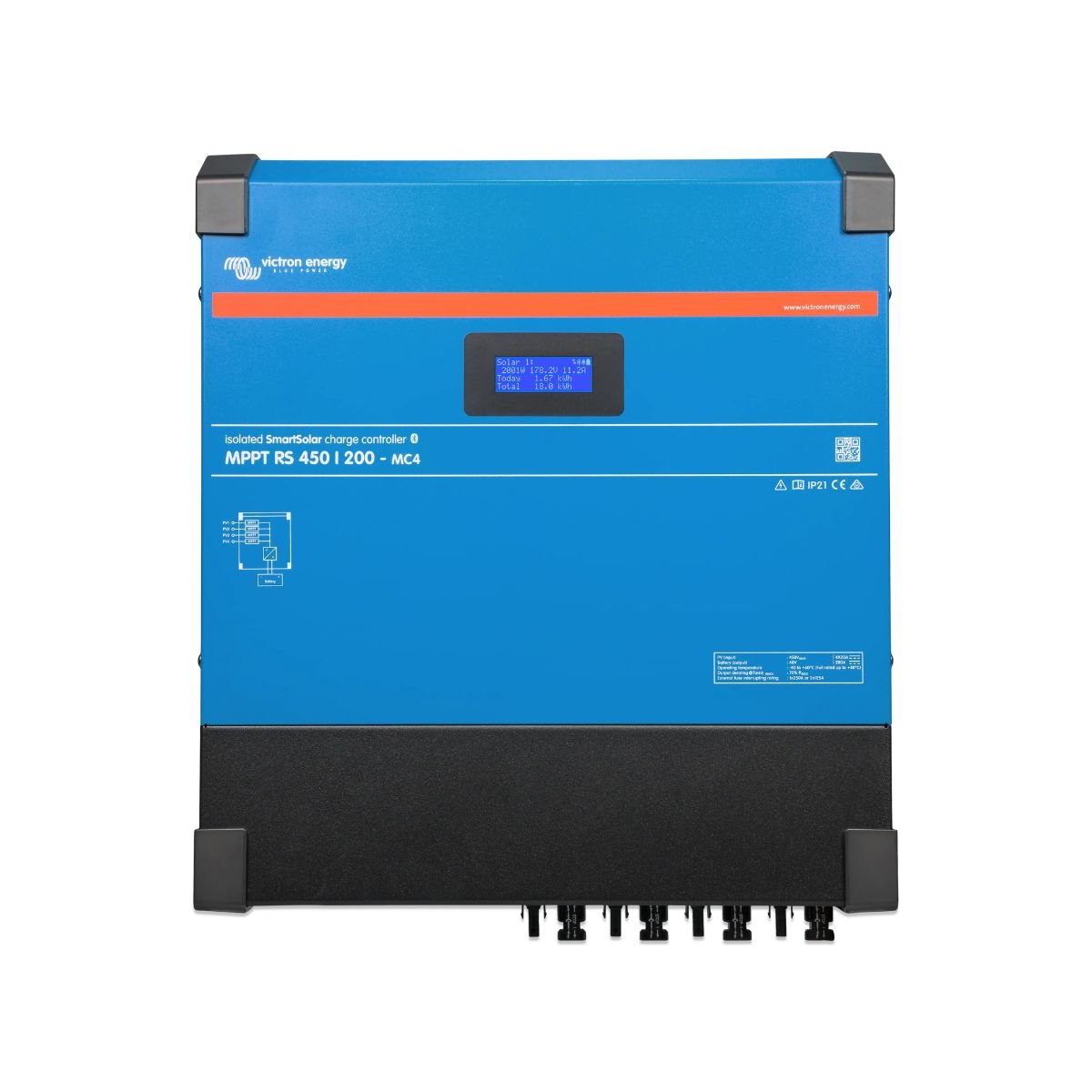

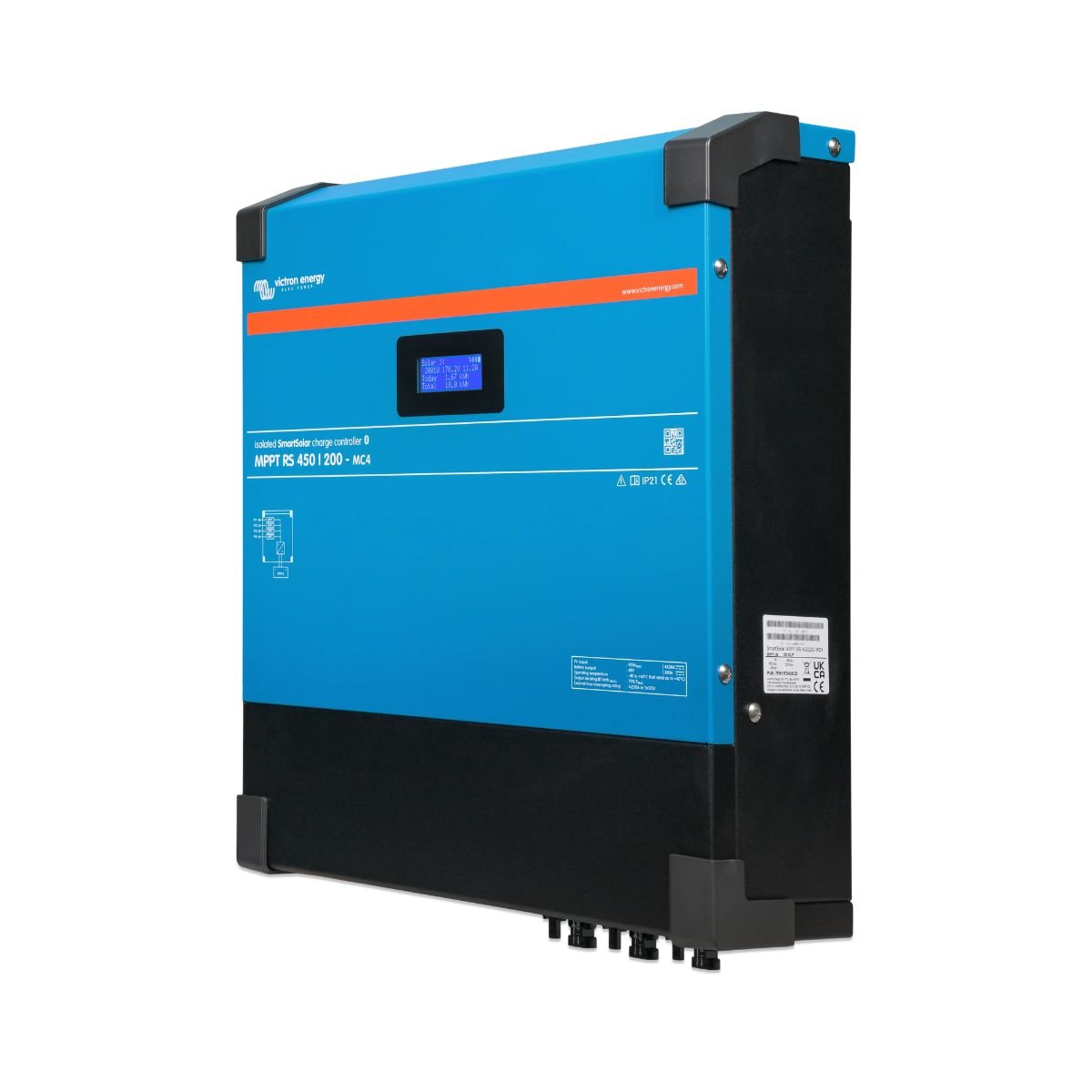

Victron SmartSolar RS 450V-200A MC4 MPPT Charge Controller
R27,104.00
Victron SmartSolar RS 450V-200A MC4 MPPT Charge Controller – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Quality installation hardware engineered for South African conditions – the safe, durable components that hold your solar system together and keep it performing for years.
The Victron SmartSolar RS 450V-200A MC4 MPPT Charge Controller by Victron Energy is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Engineered for safe, long-lasting installations
- UV- and weather-resistant for South African conditions
- The correct, compliant components for your system
- Trusted, quality-assured hardware
Specifications
| Specification | Value |
|---|---|
| Battery Voltage | 48 V |
| Maximum Charge Current | 200 A |
| Maximum Charge Power | 11.52 kW at 57.6 V |
| Charge Algorithm | Multi-stage adaptive (adjustable) |
| Battery Temperature Sensor | Included |
| Maximum Efficiency | 96% |
| Self-Consumption | 15 mA |
| Maximum DC PV Voltage | 450 V |
| Start-Up Voltage | 120 V |
| MPPT Operating Range | 65–450 V DC |
| Number of MPPT Trackers | 4 |
| Max PV Short Circuit Current | 20 A per tracker |
| Max PV Input Current | 16 A per tracker |
| Max DC Output Charging Power | 4000 W per tracker11,520 W in total |
| Maximum PV Array Size | 7,000 W per tracker |
| PV Insulation Fault Detection | Yes |
| Parallel Operation | Up to 25 units via VE.Can |
| Communication Ports | VE.Direct, VE.Can, Bluetooth (built-in) |
| Remote On/Off | Yes |
| Programmable Relay | Yes |
| Operating Temperature Range | -40 °C to +60 °C (fan-assisted cooling) |
| Humidity | 95% non-condensing |
| Battery Connection | M8 bolts |

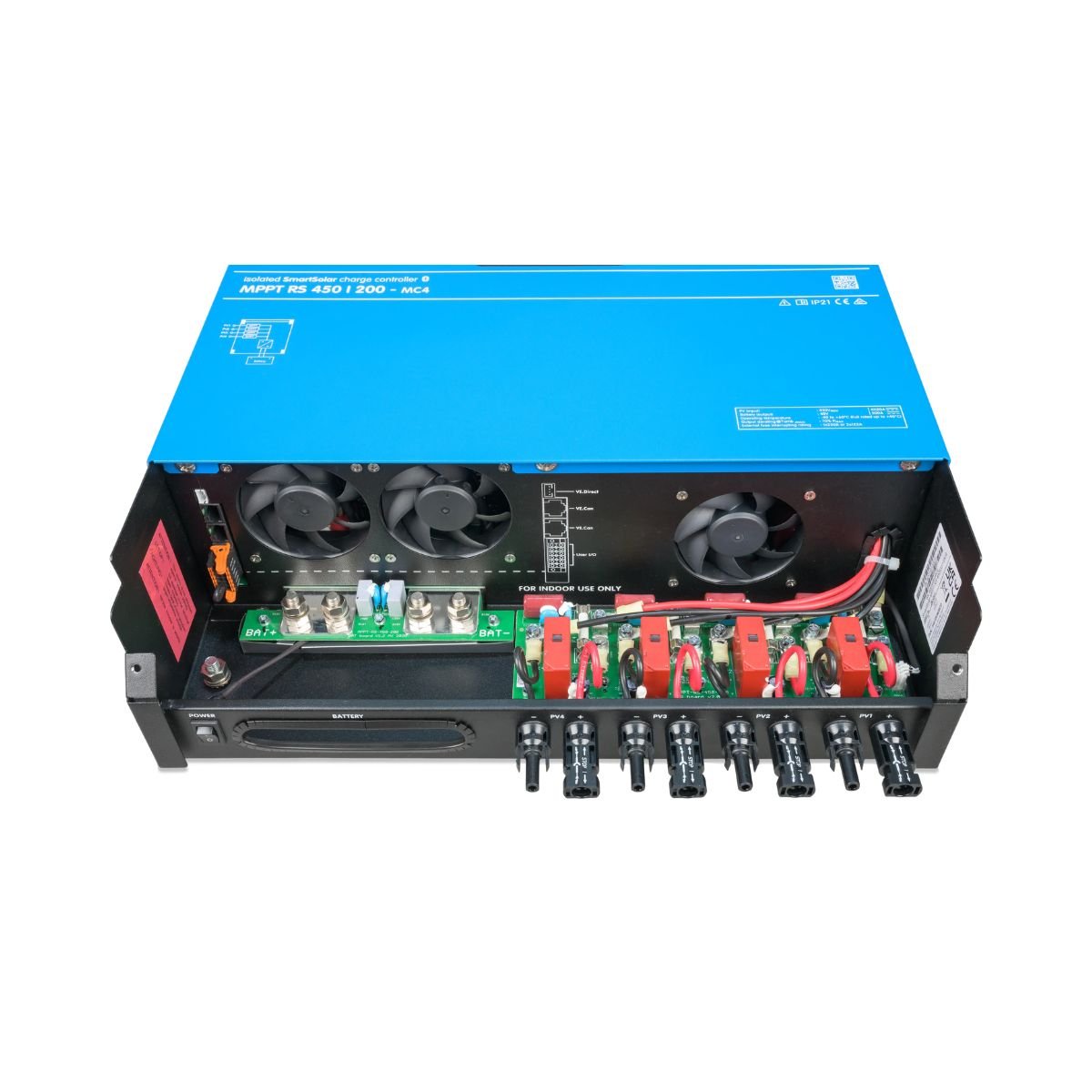

| PV Connection | 4 × MC4 connectors (2 per tracker) |
| Weight | 13.7 kg |
| Dimensions (H × W × D) | 487 × 434 × 146 mm |
| Protection Category | IP21 |
| Safety Standard | EN-IEC 62109-1 |
