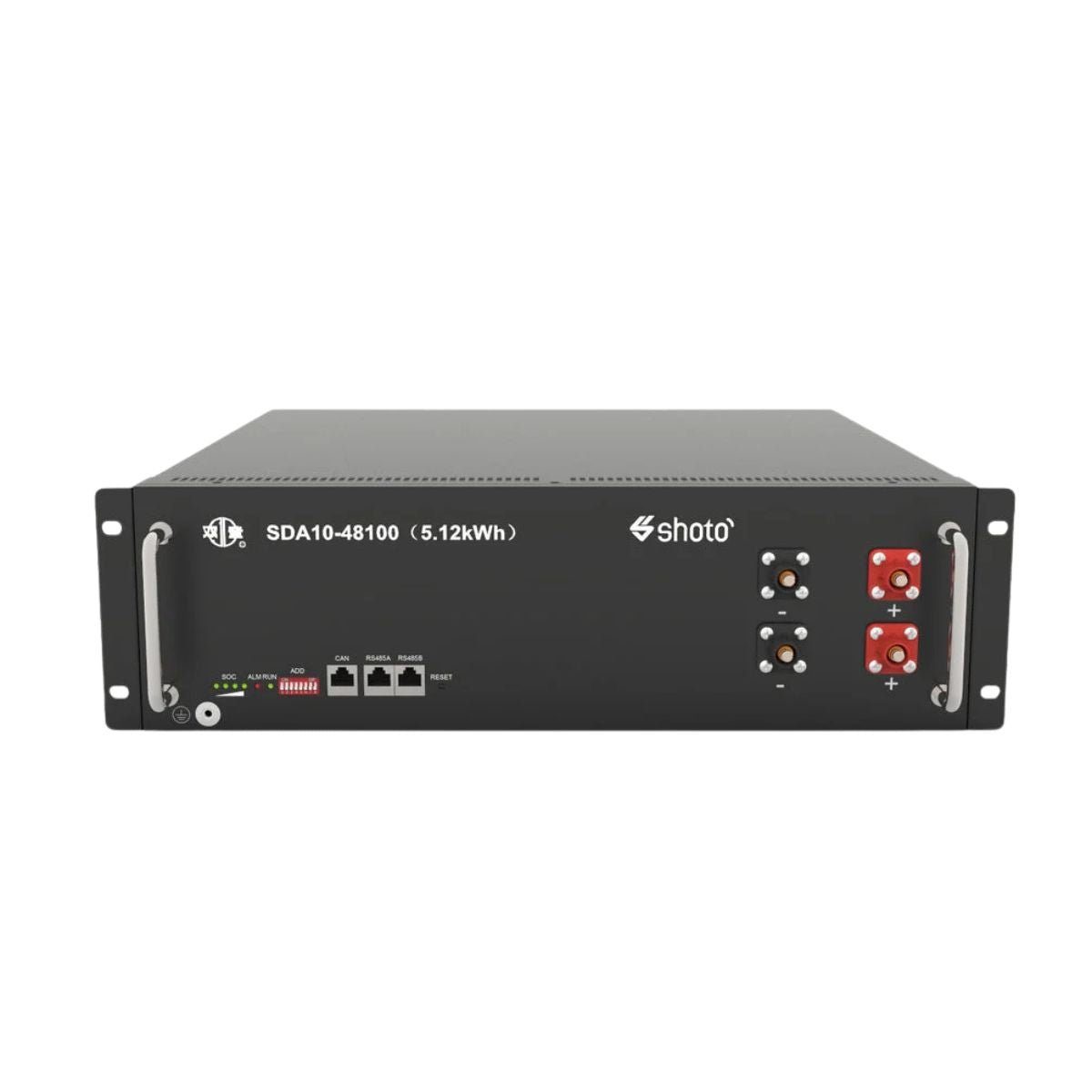

Shoto SDA10-48100 5.1kWh 100Ah 51.2V Lithium Battery
R11,355.00
Shoto SDA10-48100 5.1kWh 100Ah 51.2V Lithium Battery – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Store the energy you generate and stay powered through load-shedding with this safe, long-life LiFePO4 lithium battery – deep cycling, low maintenance and years of dependable service.
The Shoto SDA10-48100 5.1kWh 100Ah 51.2V Lithium Battery by Shoto is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Safe, long-life LiFePO4 chemistry
- Deep daily cycling for backup and self-consumption
- Scalable capacity as your system grows
- Low maintenance with a long cycle life
Specifications
| Specification | Detail |
|---|---|
| Brand | Shoto / Shuangdeng Group |
| Model | SDA10-48100 |
| Product Type | Lithium-ion battery system for energy storage |
| Available Cell Configuration | 15S / 16S |
| Nominal Voltage | 48V / 51.2V |
| Rated Capacity | 100Ah (C5, 0.2C to 40V at 25°C) |
| Operating Voltage Range | 40V-56.4V / 42V-57.6V |
| Boost Charge / Float Charge Voltage | 54.5V / 52.5V for 15S; 57.6V / 54V for 16S |
| Charging Current, Current-Limiting | 10A |
| Maximum Charging Current | 100A |
| Maximum Discharge Current | 100A |
| Discharge Cut-Off Voltage | 40V |
| Dimensions | 442mm W x 133mm H x 420mm D |
| Weight | About 42kg ±1kg for 15S; about 45kg ±1kg for 16S |
| Installation Method | Rack mounted / wall mounted |
| Communication Interface | CAN / RS485 x 2 / dry contact x 2 |
| Indicator State | ALM / RUN / SOC |
| Parallel Communication | Maximum support for 16 sets in parallel |
| Terminal Stud | M8 |
| Protection Functions | Over-voltage, under-voltage, short-circuit, overload, over-current, over-temperature and low-temperature protection |
| Cooling Mode | Self-cooling |
| Altitude | ≤4000m |
| Humidity | 5%-95% |
| Operating Temperature – Charge | -5°C to +45°C |
| Operating Temperature – Discharge | -20°C to +50°C |
| Recommended Operating Temperature – Charge | +15°C to +35°C |
| Recommended Operating Temperature – Discharge | +15°C to +35°C |
| Storage Temperature | -20°C to +35°C |
| Listed Certificates | ISO9001, ISO14001, CE, UN38.3, UL |
