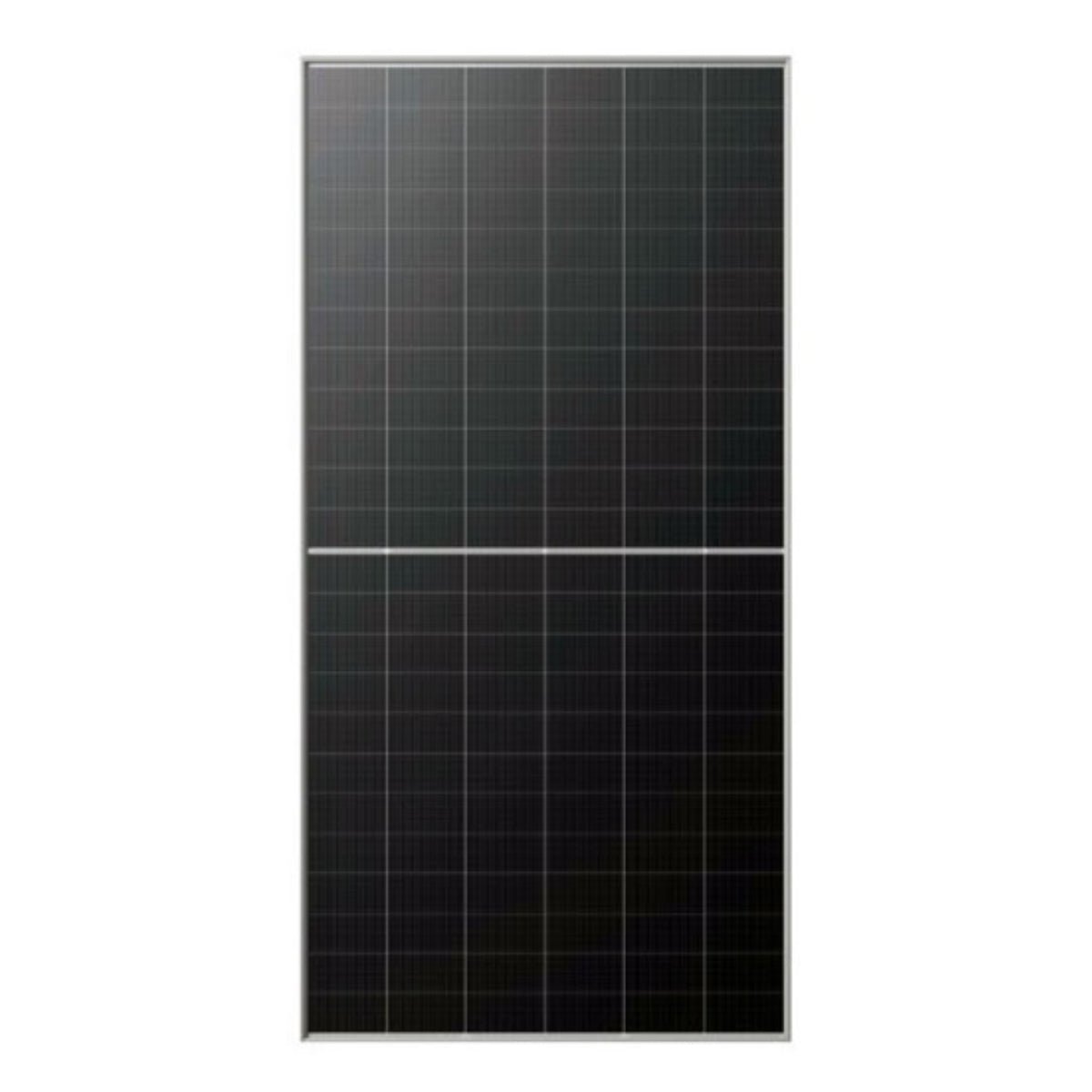

Jinko Tiger Neo 610W TOPCon N-Type Dual Glass Bifacial Solar Panel
R1,912.00
Jinko Tiger Neo 610W TOPCon N-Type Dual Glass Bifacial Solar Panel – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
This high-efficiency solar panel turns South Africa’s abundant sunshine into clean, free electricity for your home or business – cutting your Eskom bill and keeping the power on through load-shedding.
The Jinko Tiger Neo 610W TOPCon N-Type Dual Glass Bifacial Solar Panel by Jinko is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- High-efficiency cells that deliver strong yield in South Africa’s high-sun climate
- Tough, weather- and hail-resistant build for local conditions
- Cut your Eskom bill and reduce the impact of load-shedding
- Backed by a manufacturer warranty
Specifications
| Parameter | Specification |
|---|---|
| Model | JKM610N-66HL4M-BDV |
| Rated Maximum Power (Pmax) | 610 W |
| Cell Type | N-Type Monocrystalline (TOPCon) |
| Number of Cells | 132 (2 × 66) |
| Module Efficiency | 22.58% |
| Power Tolerance | 0 ~ +3% |
| Maximum Power Voltage (Vmp) | 40.46 V |
| Maximum Power Current (Imp) | 15.08 A |
| Open Circuit Voltage (Voc) | 48.68 V |
| Short Circuit Current (Isc) | 15.96 A |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 35 A |
| Operating Temperature Range | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29 %/°C |
| Temperature Coefficient (Voc) | -0.25 %/°C |
| Temperature Coefficient (Isc) | 0.045 %/°C |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.4 kg |
| Front Glass | 2.0 mm Anti-Reflective Tempered Glass |
| Back Glass | 2.0 mm Heat-Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Connector Type | JK03M / MC4 Compatible |
| Cable Cross Section | 4.0 mm² |
| Cable Length | +400 mm / −200 mm |
| Protection Class | Class II |
| Maximum Static Load (Front) | 5400 Pa |
| Maximum Static Load (Rear) | 2400 Pa |
| Fire Rating | Class C |
| Bifaciality Factor | Up to 85% |
| Container Loading | 720 pcs / 40HQ |
Buy with confidence from B&B Solar Power Solutions SA
B&B Solar Power Solutions SA is your trusted supplier of solar power, water heating and energy-efficiency products, with fast, reliable delivery to homes and businesses across all nine provinces – from Pretoria to Mbombela and everywhere in between. We stock only genuine, warrantied products at competitive prices, and our team is happy to help you size the right system for your needs.
🚚 Enjoy FREE delivery on orders over R10,000 – use code BBSPS26 at checkout. Ready to order or need a quote? Contact us today.
