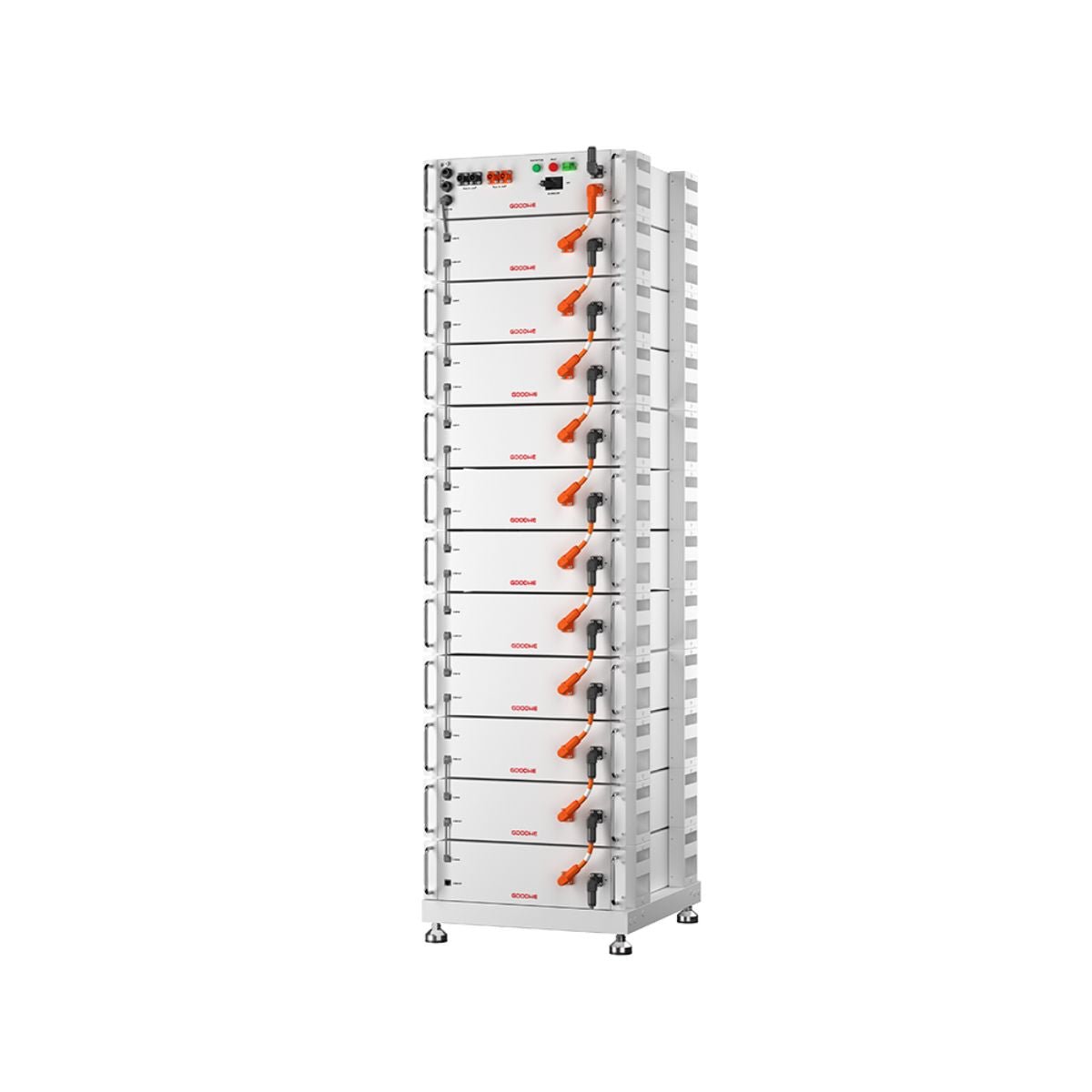

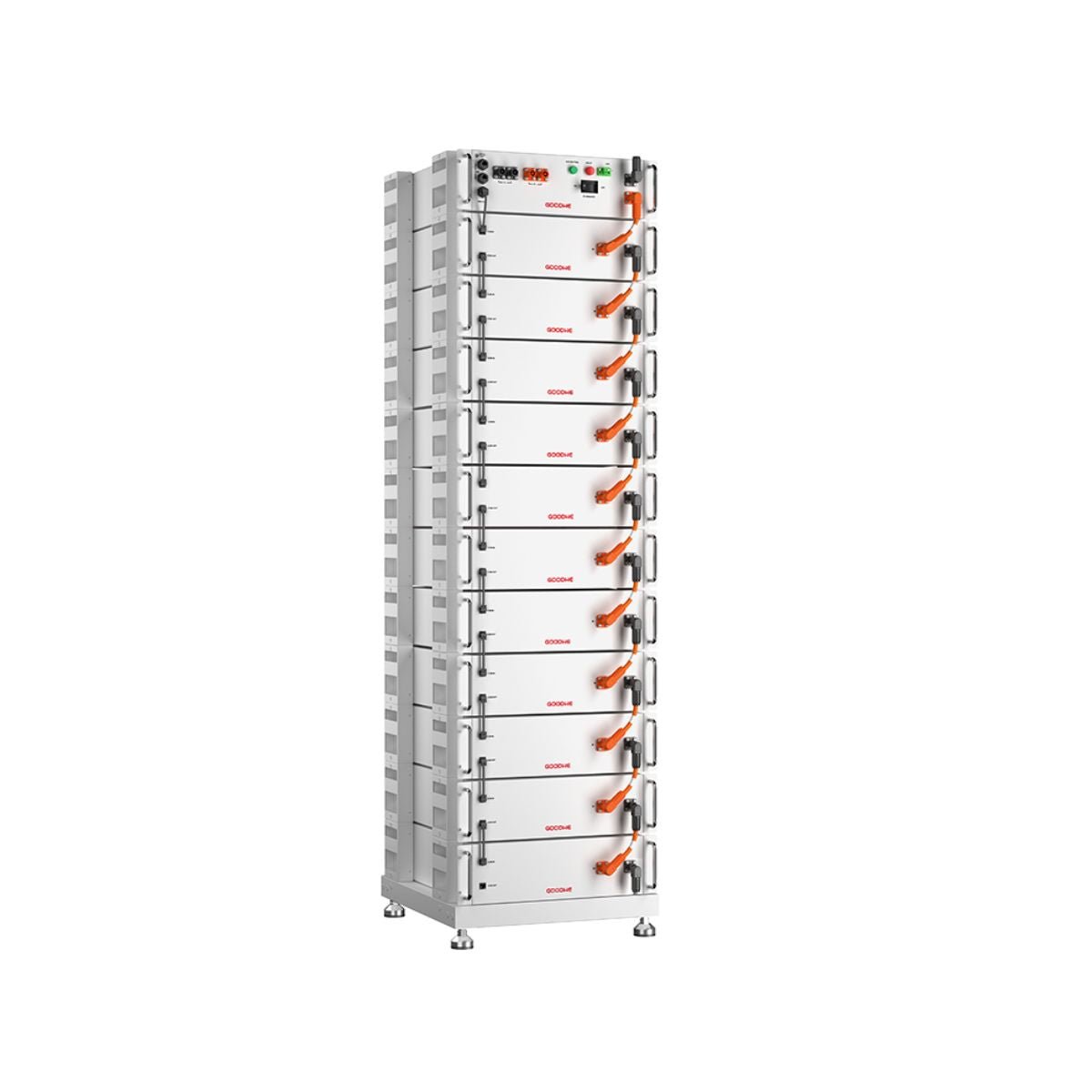

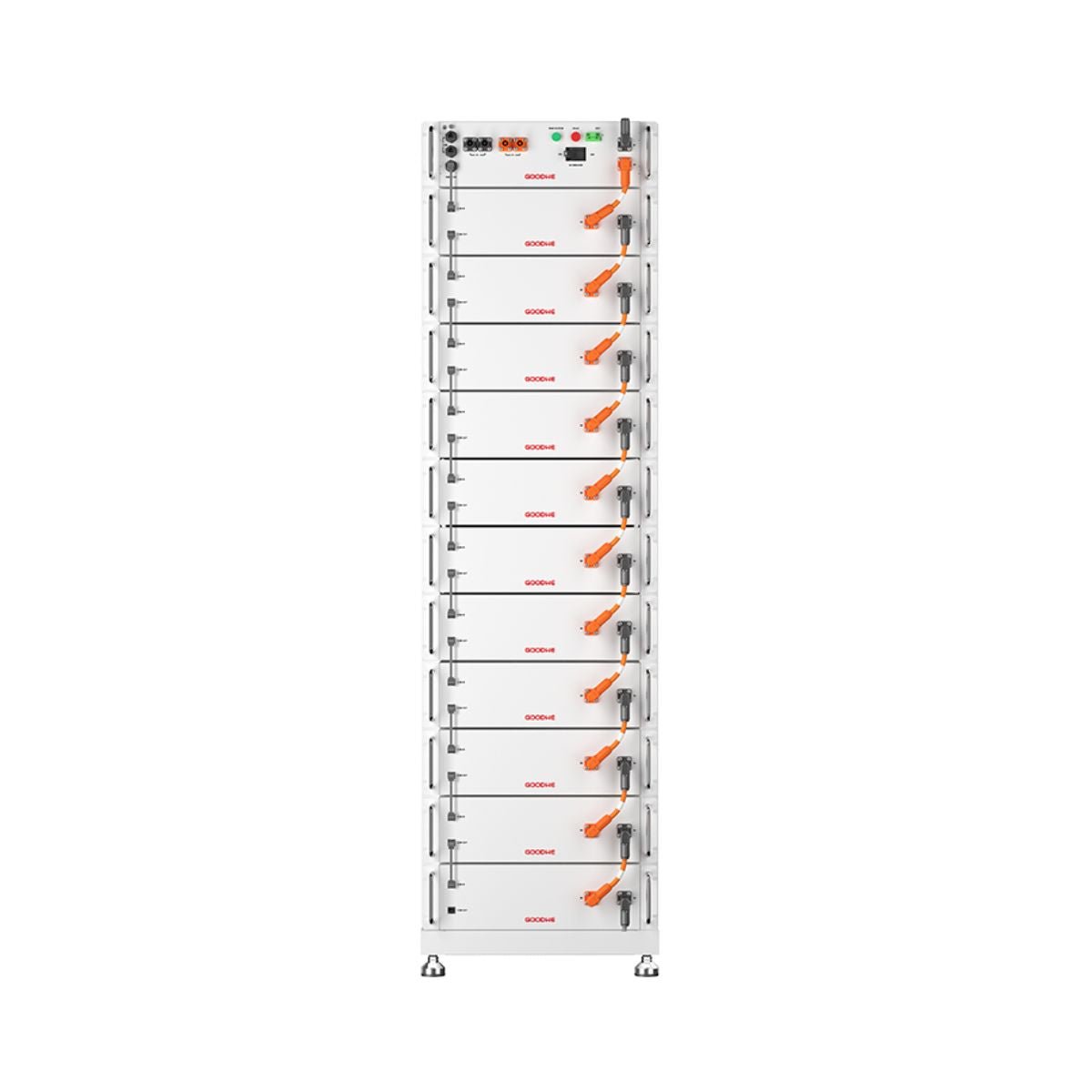

GoodWe BAT-S Series 56.3kWh High Voltage Battery Pack
R173,776.00
GoodWe BAT-S Series 56.3kWh High Voltage Battery Pack – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
Store the energy you generate and stay powered through load-shedding with this safe, long-life LiFePO4 lithium battery – deep cycling, low maintenance and years of dependable service.
The GoodWe BAT-S Series 56.3kWh High Voltage Battery Pack by GoodWe is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Safe, long-life LiFePO4 chemistry
- Deep daily cycling for backup and self-consumption
- Scalable capacity as your system grows
- Low maintenance with a long cycle life
Specifications
| Specification | Detail |
|---|---|
| Brand | GoodWe |
| Model | GW56.3-BA |
| Product Type | High-voltage battery system |
| Series | BAT-S Series |
| Nominal Battery Energy | 56.3kWh |
| Usable Energy | 55.0kWh |
| Cell Type | LFP (LiFePO4) |
| Capacity | 100Ah |
| Pack Type / Model | GW5.1-PACK-I-G10 |
| Pack Nominal Energy | 5.12kWh |
| Number of Packs | 11 |
| Nominal Voltage | 563.2V |
| Operating Voltage Range | 505.12 – 635.36V |
| Max. Charge / Discharge Current | 100 / 110A |
| Max. Charge / Discharge Rate | 1C / 1.1C |
| Max. Charge / Discharge Power | 56.3 / 61.9kW |
| Cycle Life | 6000 cycles |
| Depth of Discharge | 100% |
| Round-trip Efficiency | 96% |
| Communication | CAN (RS485 optional) |
| Cooling Method | Natural cooling |
| User Interface | LED |
| Ingress Protection Rating | IP20 |
| Fire Safety Equipment | Aerosol optional, pack level |
| Dimensions | 481 × 1753 × 552mm |
| Weight | 517kg |
| Max. Operating Altitude | 3000m |
