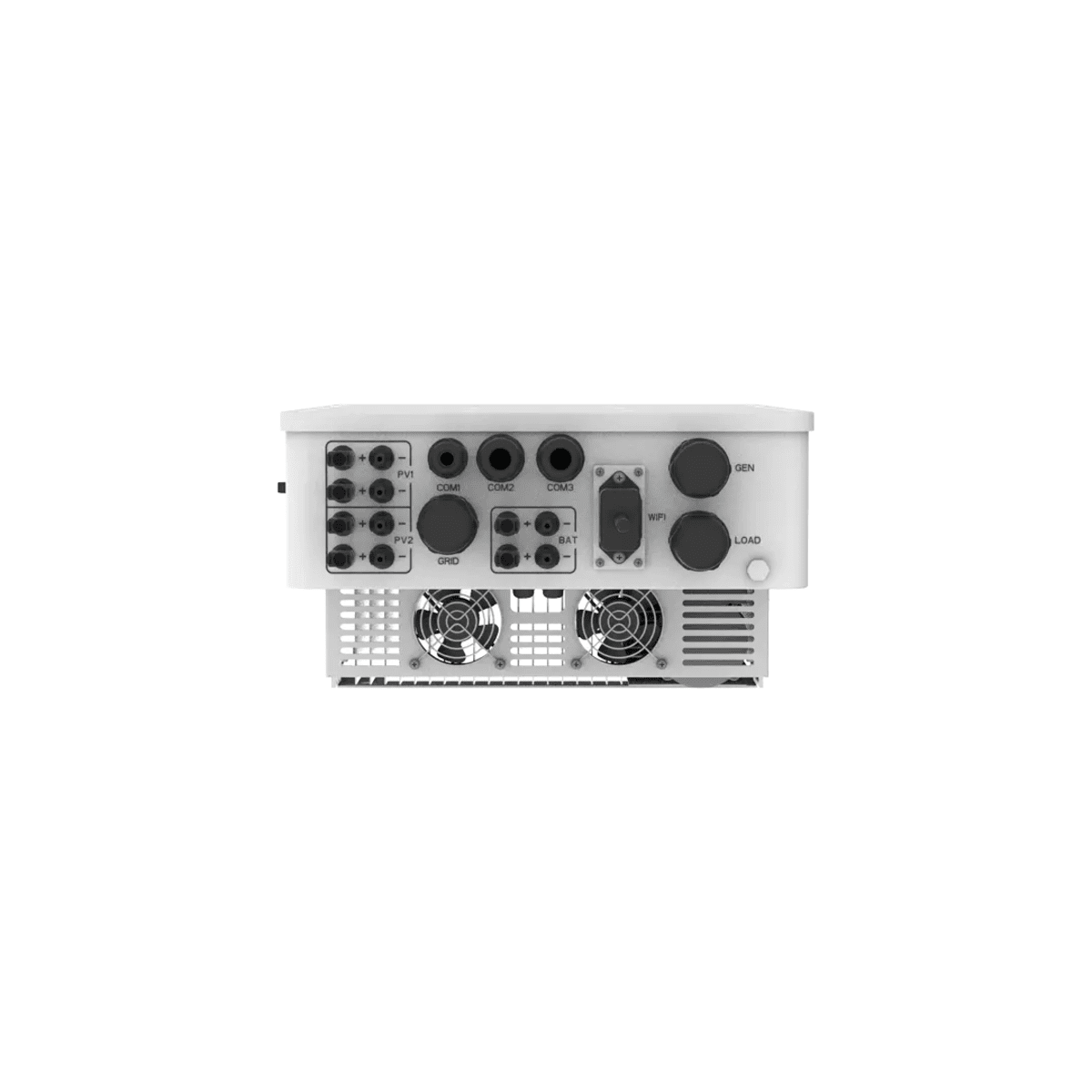

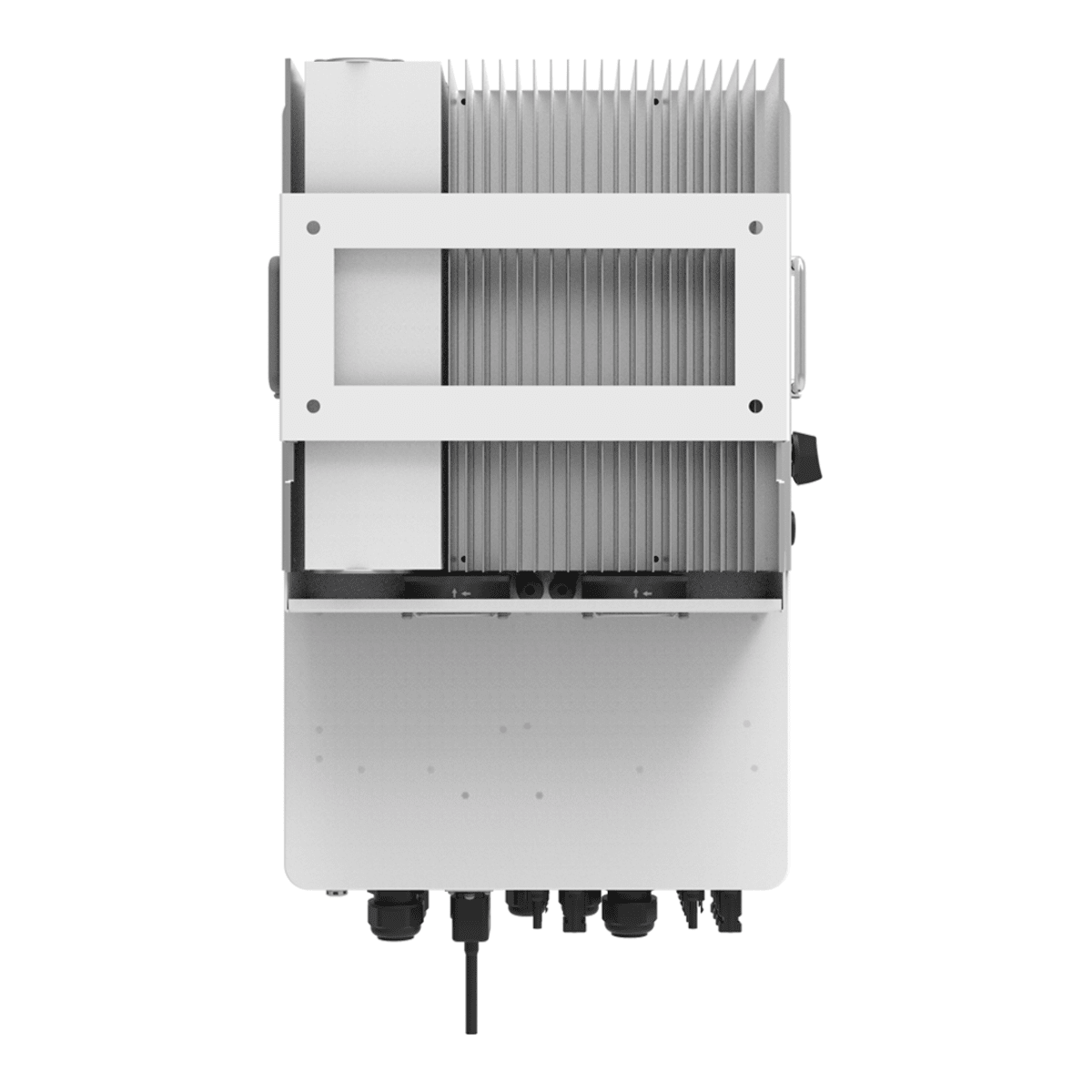

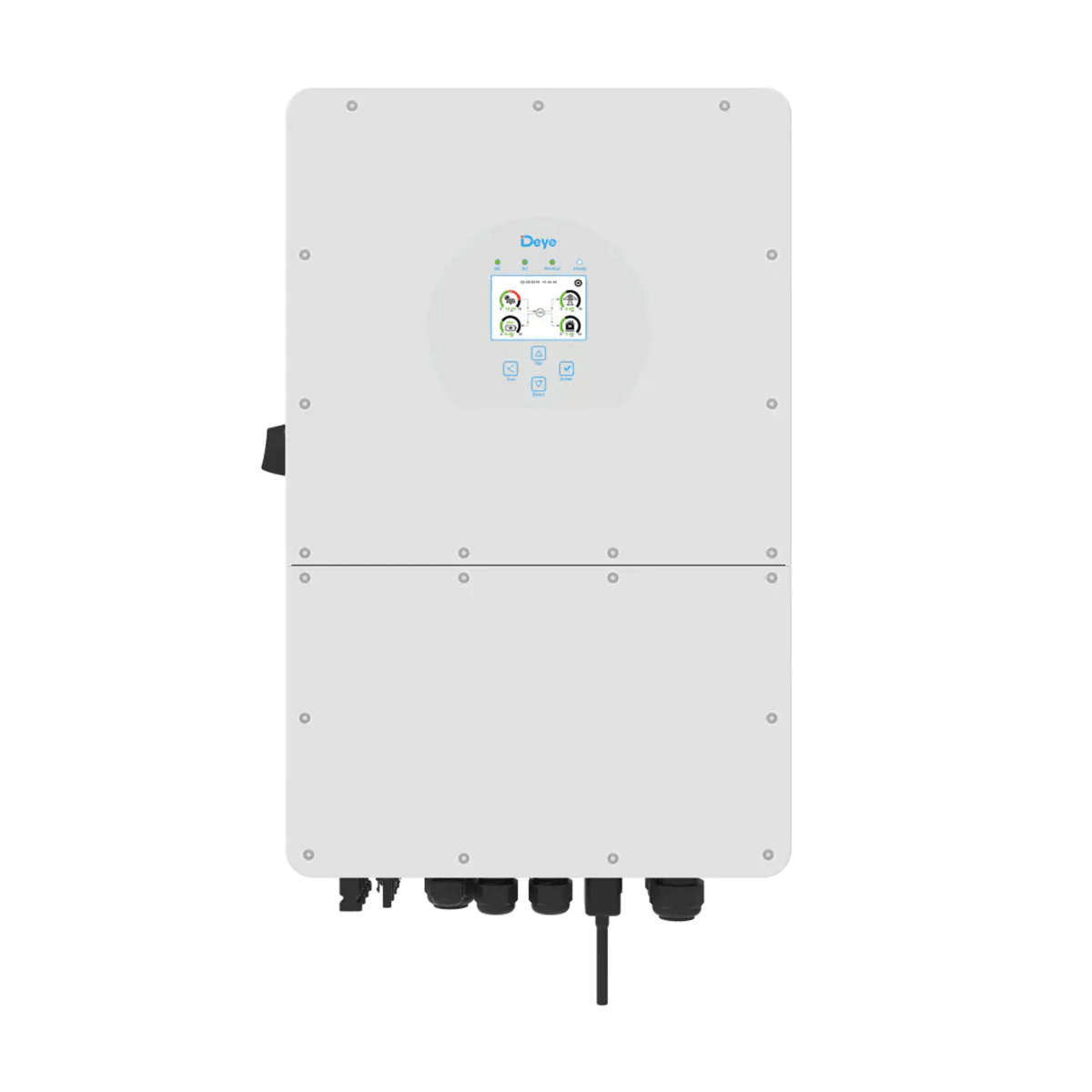

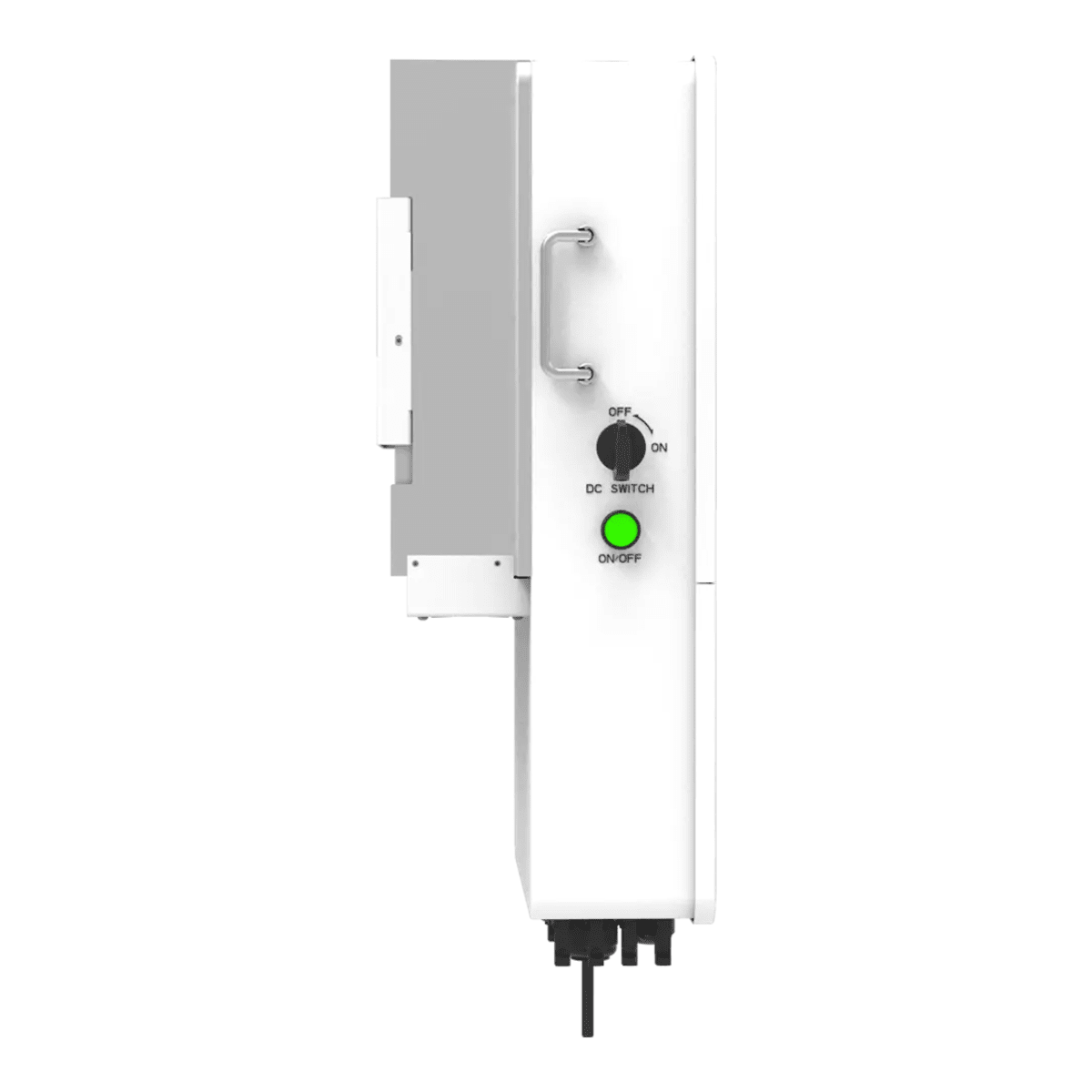

Deye 20kW 48V HV Three Phase Hybrid Inverter
R35,327.00
Deye 20kW 48V HV Three Phase Hybrid Inverter – buy online from B&B Solar Power Solutions SA with fast, nationwide delivery across South Africa. Great prices, genuine warrantied stock, expert advice.
Free shipping on orders over R10,000.00
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Overview
The inverter is the brain of any solar or backup system, seamlessly managing solar, battery and grid power and switching to backup in milliseconds when the grid goes down.
The Deye 20kW 48V HV Three Phase Hybrid Inverter by Deye is available now from B&B Solar Power Solutions SA, with fast delivery to homes and businesses across South Africa. Order online or request a quote – our team is happy to help you choose the right product for your needs.
Why buy from B&B Solar Power Solutions SA?
- Seamlessly manages solar, battery and grid power
- Fast automatic switchover the moment the grid drops
- Works with leading lithium batteries
- Remote/app monitoring where supported
Specifications
| Battery Type | Lead-acid or Li-lon. |
|---|---|
| Battery Voltage Range (V) | 160~700 |
| Max. Charging Current (A) | 37A |
| Max. Discharging Current (A) | 37A |
| Number of Battery Input | 1 |
| Charging Strategy for Li | Ion Battery: Self-adaption to BMS. |
| Max. DC Input Power (W) | 26000W. |
| Max. DC Input Voltage (V) | 1000 |
| Start | up Voltage (V): 180 |
| MPPT Range (V) | 150V – 850V. |
| Full Load DC Voltage Range | 500V – 850V. |
| Rated DC Input Voltage | 600 |
| PV Input Current (A) | 26 +26 |
| Max. PV ISC (A) | 39+39 |
| No. of MPPT Trackers | 2 |
| No. of strings per MPPT Tracker | 2+2 |
| Rated AC Output and UPS Power (W) | 20000. |
| Max. AC Output Power (W) | 22000. |
| AC Output Rated Current (A) | 30.4/29 |
| Max. AC Current (A) | 33.4/31.9 |
| Max Three | phase Unbalanced Output Current: 35 |
| Max Continuous AC Passthrough(AC) | 80 |
| Peak Power (off grid) | 1.5 times of rated power, 10 S. |
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac，230/400Vac |
| Power Factor | 0.8 leading to 0.8 lagging. |
| Grid Type | Three Phase. |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC current injection | <0.5% In |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Output Over Voltage Protection | DC Type II / AC Type Ⅲ |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Operating Temperature Range (C) | -40~60℃, >45℃ Derating |
| Cooling | Smart Cooling |
| Noise(dB) | ≤55 dB |
| Communication with BMS | RS485;CAN |
| Weight (Kg) | 30.5 |
| Size (Length x Width x Height mm) | 408×638×237 (Excluding Connectors and Brackets) |
| Protection Degree | IP65 |
| Installation Style | Wall mounted |
| Warranty | 5 Years (10 Years Optional) |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Start-up Voltage (V) | 180 |
